Home/Robotics/Robot Kits/Robotic Platforms/micro:Maqueen Plus V2 - Advanced STEM educational robotics platform

micro:Maqueen Plus V2 - Advanced STEM educational robotics platform, 2 image

micro:Maqueen Plus V2 - Advanced STEM educational robotics platform, 3 image

micro:Maqueen Plus V2 - Advanced STEM educational robotics platform, 4 image

micro:Maqueen Plus V2 - Advanced STEM educational robotics platform, 5 image

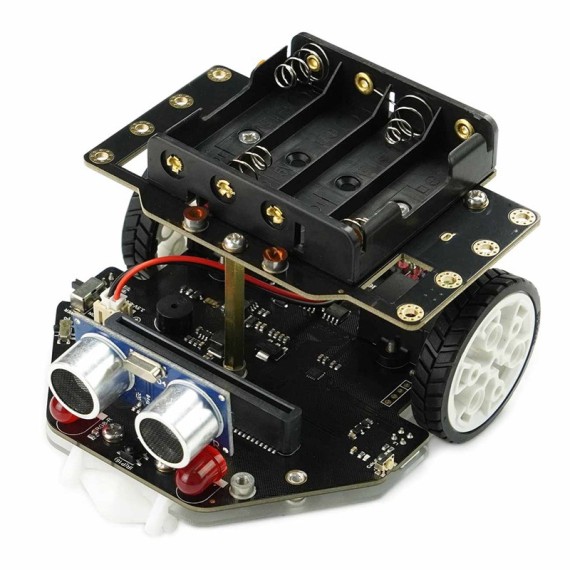

micro:Maqueen Plus V2 - Advanced STEM educational robotics platform

SKU:

25-00020101

Part Number: MBT0021-EN

CompanyDFRobot Part NumberMBT0021-EN

In Stock

Ships in 24 Hours

€69⁹⁰

+ −

Ask a question

Availability in Retail Store

Payments & Shipping

Description
Specifications

Maqueen Plus V2 is the latest iteration of the Maqueen Plus STEAM educational robot. It features enhanced capabilities, including additional expansion ports, a larger power supply, and an expanded body, making it fully compatible with a wider range of peripheral components such as the HuskyLens AI camera and Maqueen Mechanic Kits. These improvements make it an ideal STEAM teaching tool for primary and secondary students. The Maqueen Plus V2 is suitable not only for classroom instruction but also for after-school activities and robot competitions.

In addition to the functions of Maqueen Lite, it offers more flexible features and enhanced performance. Whether you’re new to Maqueen Series products or have prior experience, you'll find it easy to get started.

What’s new in Maqueen Plus V2?

Two battery options:
- 18650 battery (GRobotronics SKU:25-00016667)
- 4 AA batteries (GRobotronics SKU:25-00020101)
New plastic box with a deeper base, providing ample space for the assembled robot
Frosted acrylic protective plate at the bottom, ensuring greater durability and reliability
Reduction in the number of line-tracking sensors from 6 to 5, making programming and line-tracking code optimization easier
Upgraded ultrasonic sensor to the SR04, simplifying installation
Addition of 4 RGB ambient lights at the base, with the RGB car lights now replaced by LEDs
Removal of the less frequently used magnetic encoder

Features at a glance

No complex assembly required, get started in minutes
More I/O expansion ports:
- 8× 3.3V I/O
- 3× 5V I/O
- 3× I2C
5 line-tracking sensors for reliable and flexible performance
Larger body for greater flexibility in expansion options
Two battery options: AA or 18650 battery
- AA battery version supports 1.2V NiMH batteries or 1.5V alkaline batteries
- 18650 version supports a 3.7V 18650 battery
Compatible with the HuskyLens AI camera
Extensive range of peripherals: IR receiver, LED car lights, RGB ambient lights, buzzer, ultrasonic sensor, and more
Durable frosted acrylic protective plate on the bottom

Technical data

Power Supply: 1.5V AA alkaline battery ×4 or 1.2V AA Ni-MH battery ×4
Supports micro:bit V1 and V2
N20 All-metal Gear Motor ×2
Buzzer ×1
5V IO (P0 P1 P2) ×3
3.3V IO (P0 P1 P2 P8 P12 P13 P14 P15) ×8
3.3V I2C ×2
5V I2C ×1
Large Size LED Car Lights ×2
RGB Ambient Lights ×4
Line-tracking Sensor ×5
Line-tracking Sensor with One-key Calibration
IR Receiver ×1
HC-SRO4 Ultrasonic Module ×1
Dimensions: 136mm×65mm

Package contents

micro:Maqueen Plus V2 (AA battery) vehicle body ×1
HC-SR04 ultrasonic sensor ×1
Copper spacers ×2
Line-tracking map ×1

Notes

Suggested age: 8+
Batteries and micro:bit board are not included
Design changes notification

GRoboTutorials!

Με την αγορά ενός Maqueen STEM Robot από την Grobotronics, αποκτάτε αυτόματα πρόσβαση σε μια σειρά μαθημάτων ρομποτικής, που συνδέουν τη θεωρία με την καθημερινή τεχνολογία!

Μετά την ολοκλήρωση της αγοράς, θα λάβετε μέσω email έναν κωδικό για να ξεκλειδώσετε αποκλειστική πρόσβαση σε 17 αναλυτικούς οδηγούς. Αυτοί θα σας καθοδηγήσουν ώστε να αξιοποιήσετε στο έπακρο τις δυνατότητες του Maqueen και των περιφερειακών του (GamePad, Mechanic, HuskyLens).

Οι οδηγοί περιλαμβάνουν κώδικα σε MakeCode και Python, ενώ είναι γραμμένοι στα ελληνικά, και δεν απαιτούν προηγούμενη εμπειρία σε προγραμματισμό ή ρομποτική.
