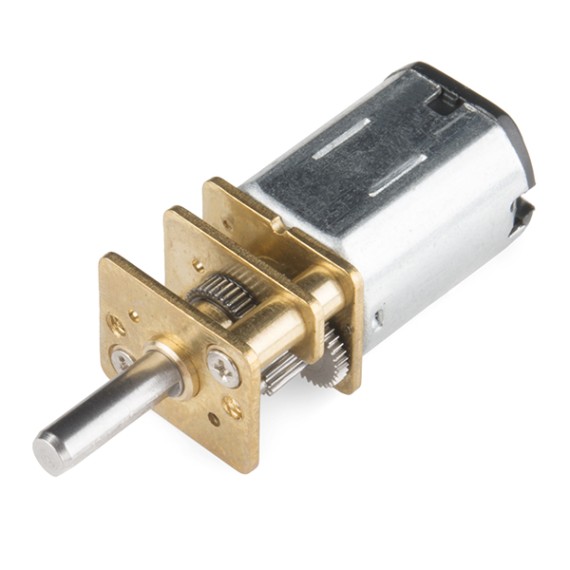

Micro Metal Gearmotor 12mm - 100RPM 12V

by OEM

This motor has a long (0.365" or 9.27 mm), D-shaped metal output shaft that matches the Pololu wheel 42x19mm and 32x7mm.

19-00012002
Gross Weight: 0.01kg
Company: OEM
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
In Stock
Ships in 24 Hours
Available in store
8.90
Without VAT 7.18
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 7.12 6.23 5.34
WISHLIST COMPARE

DESCRIPTION

This motor has a long (0.365" or 9.27 mm), D-shaped metal output shaft that matches the Pololu wheel 42x19mm and 32x7mm. The brass faceplate has two mounting holes threaded for M1.6 screws (1.6 mm diameter, 0.35 mm thread pitch), or you can use the mounting bracket or extended mounting bracket, which are specifically designed to securely mount the gearmotor while enclosing the exposed gears. We recommend the extended mounting bracket for wheels with recessed hubs, such as the Pololu wheel 42×19 mm.

SPECIFICATIONS

Μotor Diameter:
12mm
Voltage (Range):
3 - 12Volt
Current (Stall):
600mA
Speed:
100RPM
Torque:
1kg.cm
Gearmotor Style:
Micro
Gear Material:
Metal
Encoder:
No

EXTRA SPECIFICATIONS

  • Voltage: 3 - 12V
  • Speed: 100rpm @ 12V
  • No Load Current: 50mA
  • Stall Current: 600mA
  • Stall Torque: 1Kg.cm

Dimensions

  • Shaft Diameter: 3mm (D)
  • Length (Exc.Shaft): 9.3mm
  • Dimesions: 12x10 mm
  • Weight: 10gr
