Micro Metal Gearmotor - 200RPM 12V

by OEM
This motor has a long (0.365" or 9.27 mm), D-shaped metal output shaft that matches the Pololu wheel 42x19mm and 32x7mm. The brass faceplate has two...
39-00032101
Gross Weight: 0.01kg
Company: OEM
Part Number: HR0244-2B-200
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
In Stock
Ships in 24 Hours
Available in store
7.50
Without VAT 6.05
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 6.00 5.25 4.50
WISHLIST COMPARE

DESCRIPTION

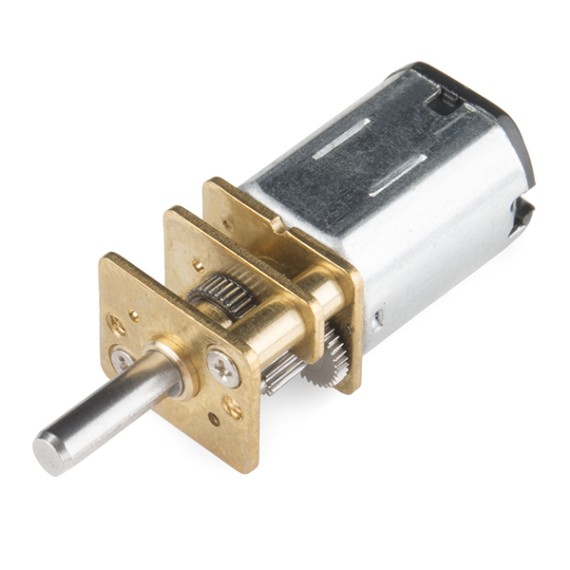

This motor has a long (0.365" or 9.27 mm), D-shaped metal output shaft that matches the Pololu wheel 42x19mm and 32x7mm. The brass faceplate has two mounting holes threaded for M1.6 screws (1.6 mm diameter, 0.35 mm thread pitch), or you can use the mounting bracket or extended mounting bracket, which are specifically designed to securely mount the gearmotor while enclosing the exposed gears. We recommend the extended mounting bracket for wheels with recessed hubs, such as the Pololu wheel 42×19 mm.

SPECIFICATIONS

Μotor Diameter:
12mm
Voltage (Range):
6 - 12Volt
Current (Stall):
600mA
Speed:
200RPM
Torque:
1kg.cm
Gearmotor Style:
Micro
Gear Material:
Metal
Encoder:
No

EXTRA SPECIFICATIONS

  • Voltage: 6 - 12V
  • Speed: 200rpm @ 12V
  • No Load Current: 50mA
  • Stall Current: 600mA
  • Stall Torque: 1Kg.cm
  • Shaft Diameter: 3mm (D)
  • Length (Exc.Shaft): 9.3mm
  • Dimesions: 12x10 mm
  • Weight: 10gr
