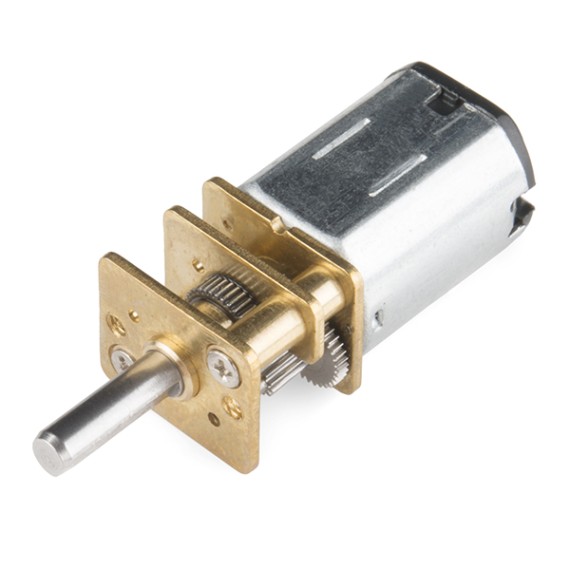

Micro Metal Gearmotor - 400RPM 12V

από OEM
This motor has a long (0.365" or 9.27 mm), D-shaped metal output shaft that matches the Pololu wheel 42x19mm and 32x7mm. The brass faceplate has two...
39-00032102
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
7.50
Χωρίς ΦΠΑ 6.05
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 6.00

ΠΕΡΙΓΡΑΦΗ

This motor has a long (0.365" or 9.27 mm), D-shaped metal output shaft that matches the Pololu wheel 42x19mm and 32x7mm. The brass faceplate has two mounting holes threaded for M1.6 screws (1.6 mm diameter, 0.35 mm thread pitch), or you can use the mounting bracket or extended mounting bracket, which are specifically designed to securely mount the gearmotor while enclosing the exposed gears. We recommend the extended mounting bracket for wheels with recessed hubs, such as the Pololu wheel 42×19 mm.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Πληροφορίες:
Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
Διάμετρος Κινητήρα:
12mm
Voltage (Range):
6 - 12Volt
Current (Stall):
600mA
Ταχύτητα:
400RPM
Ροπή:
0.5kg.cm
Gearmotor Style:
Micro
Υλικό Γραναζιών:
Μεταλλικά
Encoder:
Όχι

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Voltage: 6 - 12V
  • Speed: 400rpm @ 12V
  • No Load Current: 50mA
  • Stall Current: 600mA
  • Stall Torque: 0.5Kg.cm
  • Shaft Diameter: 3mm (D)
  • Length (Exc.Shaft): 9.3mm
  • Dimesions: 12x10 mm
  • Weight: 10gr
