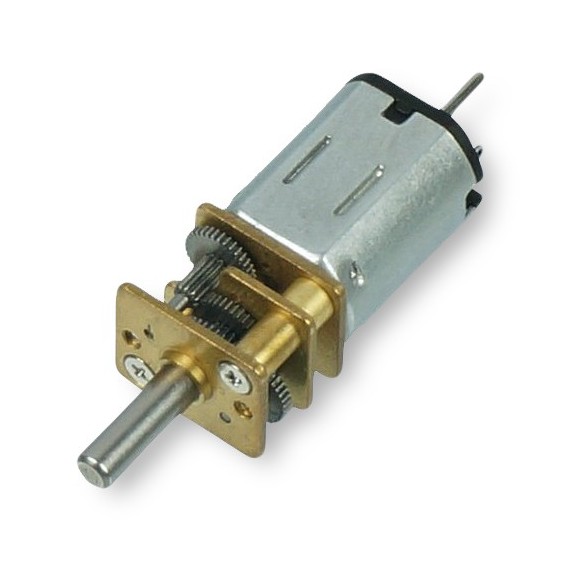

Micro Metal Gearmotor (Extended back shaft) - 1050RPM

από OEM
This gearmotor is a miniature brushed DC motor with a metal gearbox available in a range of gearing ratios depending on use. All of the micro metal...
13-00010803
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
8.90
Χωρίς ΦΠΑ 7.18
+

ΠΕΡΙΓΡΑΦΗ

This gearmotor is a miniature brushed DC motor with a metal gearbox available in a range of gearing ratios depending on use.

  • All of the micro metal gearmotors have the same physical dimensions, so one version can be easily swapped for another if your design requirements change.
  • Long (9mm), 3 mm-diameter D-shaped metal output shaft.
  • 4.5mm long, 1mm diameter back shaft, great for encoders

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.011kg
Χώρα Προέλευσης:
Κίνα
Διάμετρος Κινητήρα:
12mm
Voltage (Range):
6Volt
Current (Stall):
850mA
Ταχύτητα:
1050RPM
Ροπή:
0.26kg.cm
Gearmotor Style:
Micro
Υλικό Γραναζιών:
Μεταλλικά
Gearbox Ratio:
  • 20:1
Encoder:
Όχι

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Ratio: 20:1
  • Speed @ 6V: 1050±10% rpm
  • Free-Run Current @ 6V: 90mA (180mA max)
  • Stall Torque @ 6V: 0.26kg. cm
