Micro Metal Gearmotor (Extended back shaft) - 75RPM

από OEM
This gearmotor is a miniature brushed DC motor with a metal gearbox available in a range of gearing ratios depending on use. All of the micro metal...
13-00010801
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Part Number: COM0801
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
8.90
Χωρίς ΦΠΑ 7.18
+

ΠΕΡΙΓΡΑΦΗ

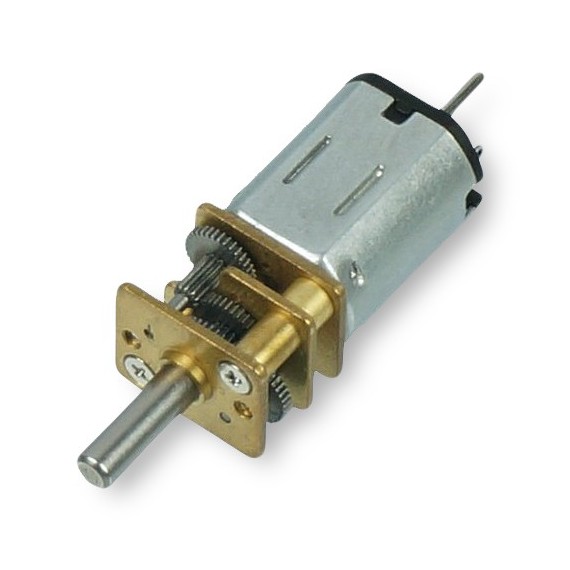

This gearmotor is a miniature brushed DC motor with a metal gearbox available in a range of gearing ratios depending on use.

  • All of the micro metal gearmotors have the same physical dimensions, so one version can be easily swapped for another if your design requirements change.
  • Long (9mm), 3 mm-diameter D-shaped metal output shaft.
  • 4.5mm long, 1mm diameter back shaft, great for encoders

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Part Number:
COM0801
Μικτό Βάρος:
0.011kg
Διάμετρος Κινητήρα:
12mm
Voltage (Range):
6Volt
Current (Stall):
900mA
Ταχύτητα:
75RPM
Ροπή:
2.5kg.cm
Gearmotor Style:
Micro
Υλικό Γραναζιών:
Μεταλλικά
Gearbox Ratio:
  • 298:1
Encoder:
Όχι

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Ratio: 298:1
  • Speed @ 6V: 75±10% rpm
  • Free-Run Current @ 6V: 60mA (120mA max)
  • Stall Torque @ 6V: 2.5kg. cm
  • Stall Current @ 6V: 900mA
