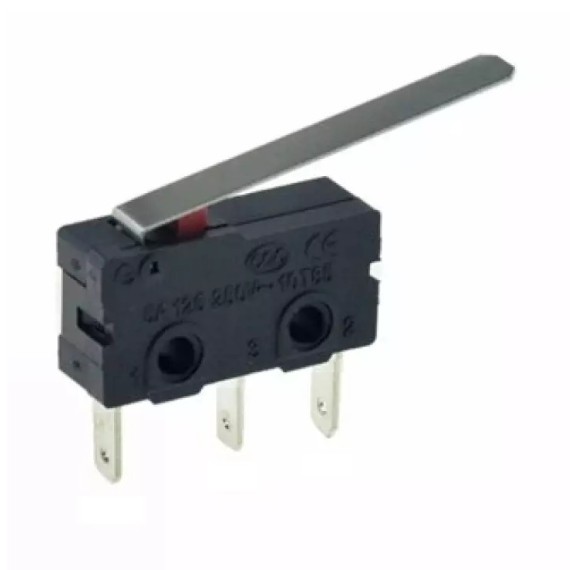

MicroSwitch Mini SPDT ON-(ON) - Long Lever

29-00030192
MS4A-Z3F150
CompanyOem Part NumberMS4A-Z3F150
In Stock
Ships in 24 Hours
050
Our quantity discounts:
Quantity
100+
1000+
Price
0.40
0.30
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

MS4A-Z3F is Snap Action Micro Switch. This switch offering variety of functions including 5A current and different levers, widely using in household appliances. Besides, it uses solder terminals for quick and easy installation.

  • Rating: 5A 250VAC/10A 125VAC
  • Circuit: SPDT
  • Actuator Forms: Long Lever
  • Terminal Type: Solder
  • Operating Temperature: -25℃~+85℃
  • Operating Force: 1.5N
  • IP Class: IP40
  • Electrical Life: 10,000 Cycles
  • Contact Resistance: ≤50mΩ
  • Insulation Resistance: ≥100MΩ
  • Dielectric Strength: 1000VACmin
Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Oem
G. Weight
0.002kg
Contacts configuration
  • SPDT
Switching method
ON-(ON)
DC or AC Rating
5A / 250VAC
Leads for
PCB
