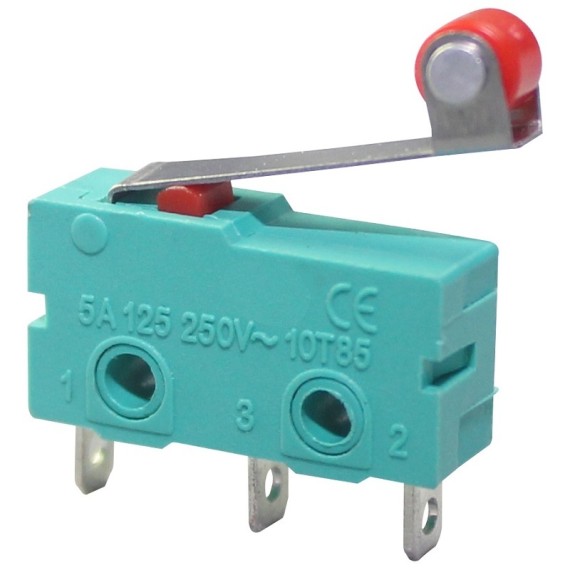

Microswitch Mini SPDT ON-(ON) - with Roller Lever

by OEM
Although small in size, KW4-Z5F roller microswitch are rated for controlling electrical loads ranging from logic level (computer based circuits) to power...
29-00016628
Gross Weight: 0kg
Company: OEM
Part Number: KW4-Z5F150
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.50
Without VAT 0.40
+
WISHLIST COMPARE

DESCRIPTION

Although small in size, KW4-Z5F roller microswitch are rated for controlling electrical loads ranging from logic level (computer based circuits) to power duty switching (up to 16.1A and 250VAC). The package size of the subminiature switch is ideal for applications where space on the equipment is at a premium. The overall length of KW4-Z5F roller microswitch are less than 20mm.

SPECIFICATIONS

Contacts configuration :
  • SPDT
Switching method :
ON-(ON)
DC or AC Rating:
5A / 250VAC
Leads for:
Flat Terminal

SPECIFICATIONS

  • Housing: Nylon 66
  • Lever: Roller lever
  • Terminal: Brass with sliver plated
  • House color: Green or Black
  • Contact Configuration: SPDT
  • Switch Operation: OFF – momentary ON
  • Rating: 5A 250VAC/10A 125VAC
  • Operating Temperature: -25℃~+85℃
  • Contact Resistance: ≤30mΩ
  • Ambient Temperature Used: 〈85% RH
  • Insulation Resistance: ≥100mΩ (500VDC)
  • Electrical Life: ≥ 10,000 Cycles
  • Dielectric strength: 1500VAC 1 minute
  • Mechanical Life: ≥ 100,000 Cycles
  • Certification: CE
