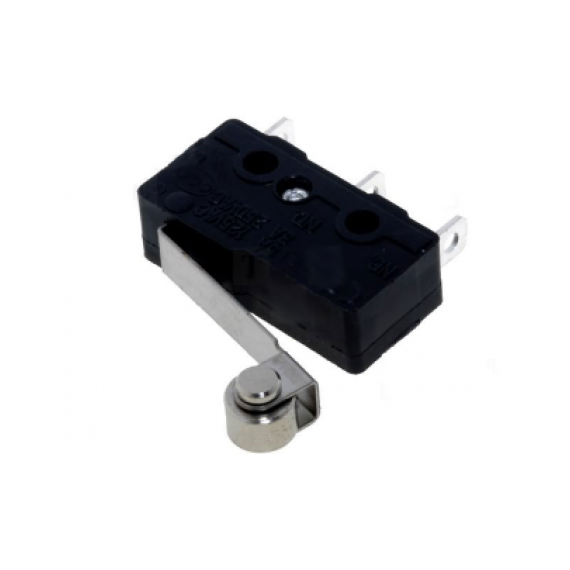

Microswitch Mini SPDT ON-(ON) - with Roller

by Highly
05-00000305
Gross Weight: 0kg
Company: Highly
Part Number: SS0505A
Made in: China
Out of Stock
Product out of stock
No stock in retail store
0.60
Without VAT 0.48

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Contacts configuration :
  • SPDT
Switching method :
ON-(ON)
DC or AC Rating:
3A / 250VAC
Leads for:
Soldering

SPECIFICATIONS

  • Switch type: Microswitch
  • Switches features with lever (with roller)
  • Contacts configuration: SPDT
  • AC contacts rating (at resistance load): 3 A / 250 VAC
  • Switching method: ON-(ON)
  • Stable positions number: 1-position
  • Sealing: IP40
  • Leads for soldering
  • Mechanical durability: 1000000cycles
  • Operating temperature -25...70°C
  • Switching torque: 1.5N
  • Electrical life: 100000cycles
  • Max. contact resistance: 30mΩ
  • Min. insulation resistance: 100MΩ

Διαστάσεις

  • 19.8 x 6.4 x 10.2mm
  • Lever length: 17mm
  • Terminal pitch: 7.3mm
