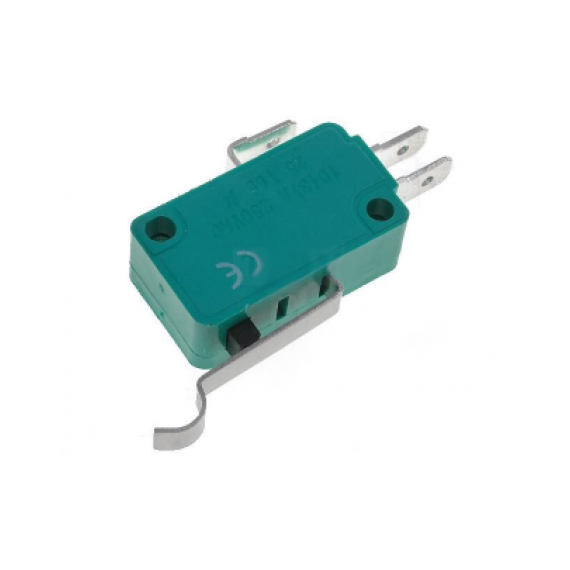

Microswitch SPDT ON-(ON) - with Roller Simulation

by OEM
05-00000304
Gross Weight: 0kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.80
Without VAT 0.65
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 0.64 0.56 0.4800
WISHLIST COMPARE

SPECIFICATIONS

Contacts configuration :
  • SPDT
Switching method :
ON-(ON)
DC or AC Rating:
10A / 250VAC
Leads for:
Flat Terminal

SPECIFICATIONS

  • Switches features with lever with roller simulation
  • Contacts configuration: SPDT
  • AC contacts rating (at resistance load): 10 A / 250 VAC
  • Switching method: ON-(ON)
  • Stable positions number: 1-position
  • Sealing: IP40
  • Operating temperature: -25...80°C
  • Switching torque: 1.6N
  • Electrical life: 100000cycles
  • Max. contact resistance: 30mΩ
  • Min. insulation resistance: 100MΩ

Διαστάσεις

  • 28 x 10.3 x 16mm
  • Leads connectors: 4.8x0.8mm
  • Lever length: 23mm
