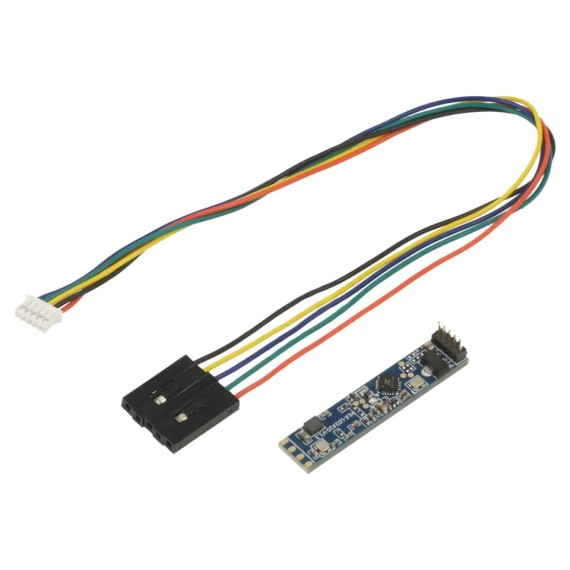

mmWave 24GHz Human Presence Sensing Module (6 Meters)

από DFROBOT
This high-sensitivity 24GHz human presence sensing radar module utilizes FMCW (frequency-modulated continuous wave) to detect human targets in the set...
25-00016690
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0557
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
12.40
Χωρίς ΦΠΑ 10.00
+

ΠΕΡΙΓΡΑΦΗ

This high-sensitivity 24GHz human presence sensing radar module utilizes FMCW (frequency-modulated continuous wave) to detect human targets in the set space. Combined with radar signal processing and accurate human sensing algorithm, it can achieve high-sensitivity sensing of human presence status, which can identify human body in motion and stationary state and calculate auxiliary information like the distance to the target.

The sensing effect of the radar module is insusceptible to environmental factors like temperature, brightness, humidity, light fluctuations, etc. Besides, FMCW radars can penetrate materials, which enables this module to work well in a shell without opening holes.

This microwave radar is mainly used in indoor scenarios to sense whether there is a moving or micro-moving human in the detection area and output the detection results in real time. It offers a sensing distance of up to 6 meters and a resolution of 0.75m. Besides, it provides serial communication protocol so users can configure the sensing distance range, sensing sensitivity in different intervals, and delay time for different applications.

The module supports UART and GPIO (high and low level) output. When used with Arduino or other controllers, it can be flexibly applied to various projects such as smart light control, human body induction wake-up of advertising screen, UV light control, and home security.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0557
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Κίνησης
Τυπική Τάση Εισόδου:
  • 5VDC
  • 12VDC
Ρεύμα Λειτουργίας:
80mA
Διασύνδεση:
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας:
  • UART

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Frequency Range: 24GHz-24.25GHz
  • Modulation Mode: FMCW
  • Operating Voltage: DC 5V-12V
  • Average Operating Current: 80mA
  • Detection Distance: 0.75m-6m (Measured blind zone distance: 30cm)
  • Detection Angle: ±60°
  • Interface: UART & GPIO (3.3V I/O level)
  • Default Baud Rate: 57600
  • Distance Resolution: 0.75m
  • Sweep Bandwidth: 250MHz
  • Ambient Temperature: -40 to 85℃
  • Dimension: 7x35mm
  • Connector: SH 1.27mm to DuPont 2.54

ΔΥΝΑΤΟΤΗΤΕΣ

  • 5-12V wide supply voltage
  • High sensitivity, wide detection angle of 120°
  • Sensing distance up to 6m, capable of outputting distance value
  • Long and narrow shape with a width of 7mm, small in size, and easy to embed
  • Support UART & GPIO (high/low level) output

Applications

  • Smart light control
  • Human body induction wake-up of advertising screen
  • UV light control
  • Home security
