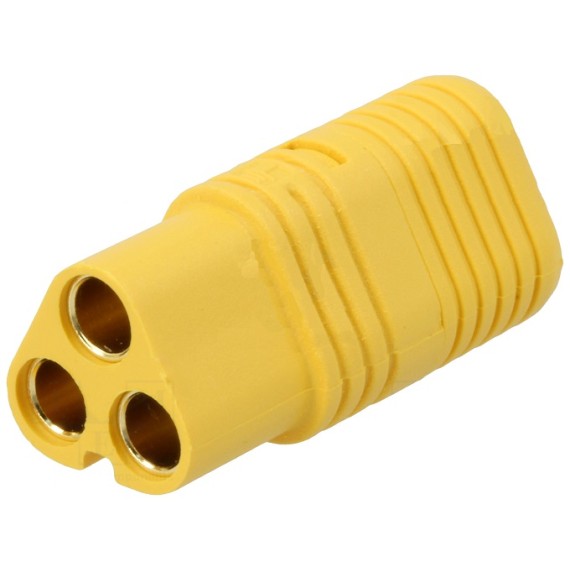

MT60 Connector Female

MT60 Connector Female

AMASS, MT60-F
05-00016899
1.30
Available
for online order
+
Add to wish list
Διαθεσιμότητα Καταστήματος Αθήνας
Low Availability
Connector Type:
  • MT Series
Connector Type:
  • Female
Company:
AMASS
MPN:
MT60-F
Made in:
China
Contact Current Max. :
60A
  • Connector: Plug
  • Type of connector: DC supply
  • Connector series: MT60
  • Kind of connector: Female
  • Number of pins: 3
  • Mechanical mounting: For cable
  • Electrical mounting: Soldered
  • Contact plating: Gold flash
  • Colour: Yellow
  • Current rating: 60A
  • Rated voltage: 500V
  • Flammability rating: UL94V-0
  • Operating temperature: -20...120°C
  • Spatial orientation: Straight
  • Contact material: Brass
  • Wire size: 12AWG
  • Body material: Polyamide
  • Mechanical durability: 1000cycles
