OpenBuilds Extreme Mini V Wheel Kit - Polycarbonate

The OpenBuilds Xtreme Mini V Wheel is part of the heavy duty Xtreme line of OpenBuilds parts, designed with strength in mind. These Xtreme Mini V's are made...
27-99920855
Volumetric weight: 0.01kgs
Company: OpenBuilds
In Stock
Ships in 24 Hours
Available in store
3.99
Without VAT 3.22
+
WISHLIST COMPARE

DESCRIPTION

The OpenBuilds Xtreme Mini V Wheel is part of the heavy duty Xtreme line of OpenBuilds parts, designed with strength in mind.

These Xtreme Mini V's are made from very hard polycarbonate (clear) material which, due to its strong nature, will resist compression and wear and, in turn, leads to better overall precision and strengh for your builds.
The Xtreme Wheels are designed to be used as a heavy duty alternative to the Delrin Wheels in applications such as CNC Routers/Mills where force and weight are introduced into the system. So, while the Delrin Mini V Wheels work great for most light load applications, the OpenBuilds Xtreme Mini Wheels can be used for builds where heavier loads are required and less compression in the delrin is desired.

Many of these wheels could be added to a gantry to allow for an even distribution of the load across them.
Each wheel is carefully milled for consistent high precision and tolerance.

SPECIFICATIONS

Series:
  • Mini V
Material:
Polycarbonate

Notes

  • Also, be sure to grab the screws and spacers of your choice here:
  • Usually for a standard gantry plate you will need two Eccentric Spacers as well as two Aluminum Spacers

EXTRA SPECIFICATIONS

  • Material: Polycarbonate (clear)
  • Rockwell Hardness: M 75
  • Compressive Strengh: 86Mpa

Dimensions

  • 15.23 OD x 9.974 +/- 0.026 ID x 8.8 'thick'

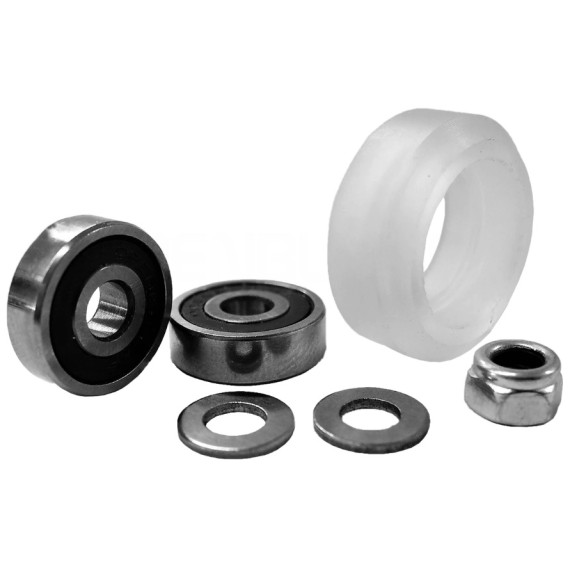

Contents

  • 1x Xtreme Mini V Wheel
  • 2x Mini V Bearings (V3)
  • 2x Mini V 1mm Precision Shim
  • 1x M5 Nylon Lock Nut
