OpenBuilds Solid V Wheel Kit

The OpenBuilds Solid V Wheel is a strong wheel that resist deflection due to its solid nature. This wheel style was produced for two reasons. First for...
27-99920815
Gross Weight: 0.02kg
Company: OpenBuilds
Made in: EU
In Stock
Ships in 24 Hours
Available in store
3.20
Without VAT 2.58
+
WISHLIST COMPARE

DESCRIPTION

The OpenBuilds Solid V Wheel is a strong wheel that resist deflection due to its solid nature. This wheel style was produced for two reasons. First for builds where heavier loads were required and less compressing in the delrin is noticed. Many of these wheels could be added to a gantry to allow an even distrbution of the load across them. Second is for improved preformanced of the belt and pinion system to give the belt a flat surface to ride on.

SPECIFICATIONS

Series:
  • Solid V
Material:
Delrin

NOTES

  • Also, be sure to grab the screws and spacers of your choice here:
  • Usually for a standard gantry plate you will need two Eccentric Spacers as well as two Aluminum Spacers

SPECIFICATIONS

  • Material: Delrin (black)
  • Rockwell Hardness: M80
  • Compressive Strengh: 63Mpa

Διαστάσεις

  • 23.90 OD x 16 ID  x 10.23 'thick'

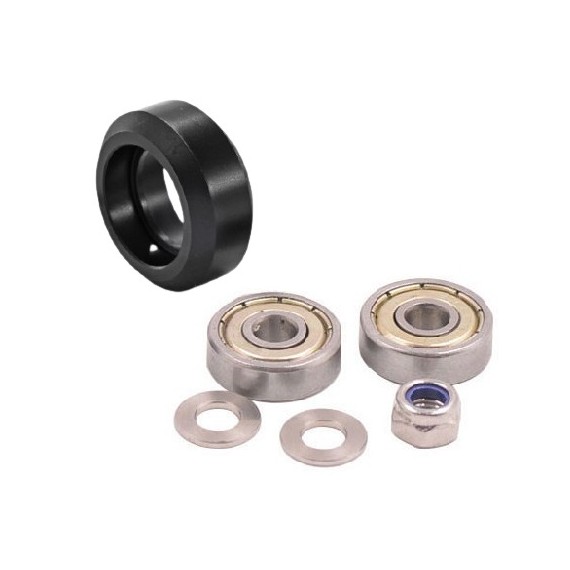

Το κιτ περιέχει

  • 1x OpenBuilds Solid V Wheel
  • 2x Ball Bearings - 625ZZ
  • 2x 5mm Precision Shim
  • 1x Lock Nut with Nylon Insert
