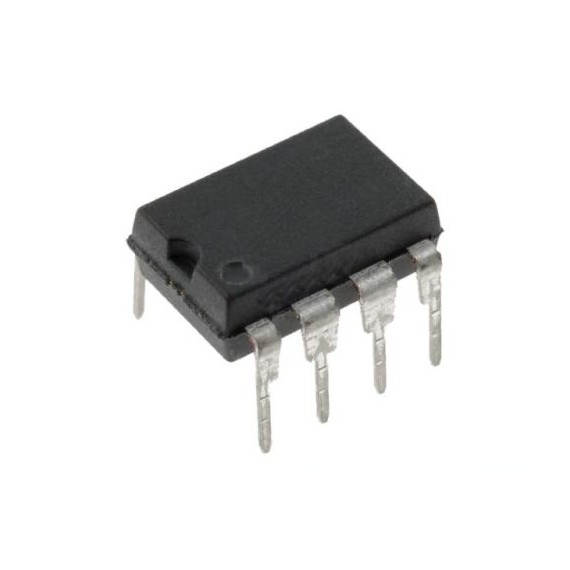

Operational Amplifier - OPA2134PA

05-00021340
OPA2134PA
ΚατασκευαστήςTexas Instruments Part NumberOPA2134PA
Κατόπιν παραγγελίας
Διαθέσιμο σε 1-3 ημέρες
€590
Texas Instruments
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά
The OPA134 series are ultra-low distortion, low noise operational amplifiers fully specified for audio applications. A true FET input stage was incorporated to provide superior sound quality and speed for exceptional audio performance. This in combination with high output drive capability and excellent dc performance allows use in a wide variety of demanding applications. In addition, the OPA134’s wide output swing, to within 1V of the rails, allows increased headroom making it ideal for use in any audio circuit. OPA134 op amps are easy to use and free from phase inversion and overload problems often found in common FET-input op amps. They can be operated from ±2.5V to ±18V power supplies. Input cascode circuitry provides excellent common-mode rejection and maintains low input bias current over its wide input voltage range, minimizing distortion. OPA134 series op amps are unity-gain stable and provide excellent dynamic behavior over a wide range of load conditions, including high load capacitance. The dual and quad versions feature completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded. Single and dual versions are available in 8-pin DIP and SO-8 surface-mount packages in standard configurations. The quad is available in 14-pin DIP and SO-14 surface mount packages. All are specified for –40°C to +85°C operation. A SPICE macromodel is available for design analysis.
  • Mounting Style: Through Hole
  • Type: 2-Channel FET Input
  • Package/Case: PDIP-8
  • THD plus Noise: 0.00015 %
  • Supply Voltage - Max: 36 V
  • Supply Voltage - Min: 5 V
  • Maximum Operating Temperature: + 85 C
  • Minimum Operating Temperature: - 40 C
  • Description/Function: Wideband Amplifier
  • Features: Burr-BrownÃ?¢ââ?¬Å¾Ã?¢ Audio
  • Supply Type: Dual
  • Number of Channels: 2 Channel
  • CMRR - Common Mode Rejection Ratio: 86 dB to 100 dB
  • Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
  • GBP - Gain Bandwidth Product: 8 MHz
  • Ib - Input Bias Current: 100 pA
  • Maximum Dual Supply Voltage: +/- 18 V
  • Minimum Dual Supply Voltage: +/- 2.5 V
  • Operating Supply Current: 4 mA
  • Operating Supply Voltage: 5 V to 36 V
  • PSRR - Power Supply Rejection Ratio: 90 dB
  • SR - Slew Rate: 20 V/us
  • Vos - Input Offset Voltage: 2 mV
Θήκη
DIP8
Κατασκευαστής
Texas Instruments
Part Number
OPA2134PA
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Καθ. Βάρος
0.001kg
