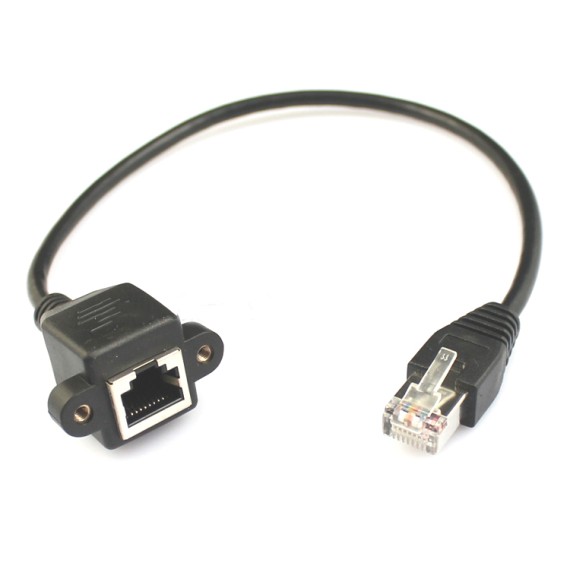

Ethernet Extension Cable (Panel Mount)

by OEM
This handy Ethernet extension cable will make it easy for you to enclose a device that has an Ethernet port.
19-00090169
Gross Weight: 0.04kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
1.90
Without VAT 1.53
+
WISHLIST COMPARE

DESCRIPTION

This handy Ethernet extension cable will make it easy for you to enclose a device that has an Ethernet port. We think this would be most useful when putting a Beagle Bone, Raspberry PiArduino Ethernet into a box. The jack half has two mounting 'ears' with 4-40 screws installed, 25mm apart. The ears are flexible so the holes don't have to drilled very precisely. Can be used with box walls up to 6.35mm wide. The screws can be put on from the back for 'reverse' mounting if the box thickness is a problem. Entire unit is 300±10mm.



NOTES

  • Screws not included.

SPECIFICATIONS

Type of connection cable:
  • Female UTP
  • U/UTP
Variant:
  • Cat 5e
Cable length:
0.30m
Insulation colour:
  • Black
Outer insulation material:
PVC
Cable/Adapter Structure:
  • Female RJ45 to Male RJ45

SPECIFICATIONS

  • 300±10mm from tip to tip
  • 210±10mm cabling from jack to connector
  • Plastic "boot" at Ethernet end is 23mm tall x 36.5mm wide x 30mm deep
