TYPEC PoE Cable USB-C - Black (165mm)

19-00015799
TYPEC0502
CompanyOem Part NumberTYPEC0502
In Stock
Ships in 24 Hours
1200
Our quantity discounts:
Quantity
10+
Price
9.60
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

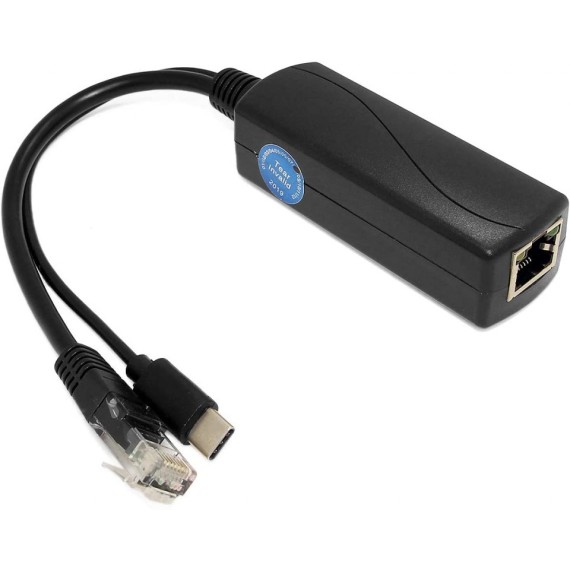

TYPEC PoE splitter is a new model: With RJ45 port and DC port with TYPE C.

TYPEC PoE splitter base on IEEE802.3af standard and can separate the power and data via cable transmission. Proper matching use with POE switch or PSE injector which meet standard IEEE802.3af, provides power and data at the same time for the terminal device does not support PoE.

Output voltage of 5V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other POE practical place, and is not restricted by layout of power line.

  • Support international standard IEEE802.3 af(12.5W), POE port Support 10/100Mbps data transmission.
  • Transfer Rate: 10/100Mbps, Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af.
  • PD support 37V - 57V voltage transmission, Automatically detects power supply from PSE power supply module.
  • 5V/2.4A power output using Type-C, the Type-C port only for power-charging.
  • Support the isolation circuit protection, can effectively protect electrical equipment.
  • Support the short circuit, overvoltage protection, 1500V high voltage isolation.

  • Transfer Rate: 10/100Mbps(Gigabit)
  • Power:
    • Input: 48V DC /0.35A
    • Output: 5V/2.4A
  • Standard: IEEE802.3 af(12.5W)
  • TRNF: 1/2(+),3/6(-);4/5(+),7/8(-)
  • Interface Type:
    • 1x Input RJ45 port
    • 1x output RJ45 port
    • 1x DC output(Type-C)
  • Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af
  • LED: Yellow PoE lamp
  • Temperature: Work within -20~50°, Storage within -30~60°
  • Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)
  • Dimension: 80x28x21mm
  • Weight: 50g

Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Oem
G. Weight
0.001kg
Type of connection cable
  • USB C
  • UTP PoE
Variant
  • Passive PoE
Insulation Color
  • Black
Outer insulation material
PVC
