Pi Display 10.1" HDMI 1280x800 IPS Capacitive Touchscreen USB

31-00023739
10.1DP-CAPLCD
ΚατασκευαστήςWaveshare Part Number10.1DP-CAPLCD
Διαθέσιμο
Αποστολή σε 24 ώρες
€9990
Waveshare
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€89.91
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

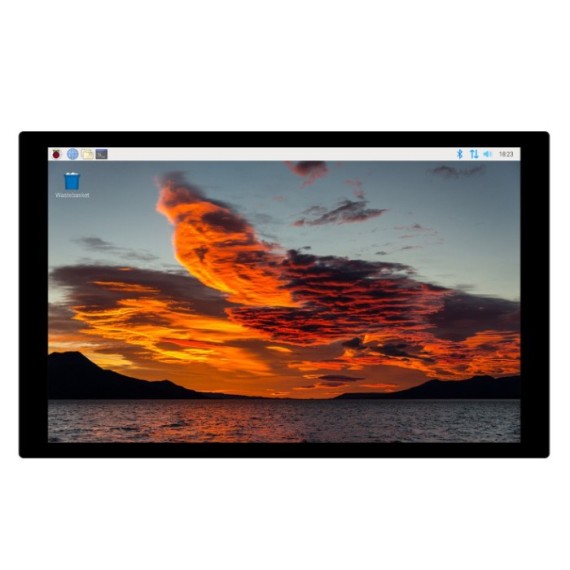

10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface

10.1″ Touch Display
HD Resolution | Multi-Point Touch | Full Color

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

Capacitive 10-Point Touch

  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof

Adjustable Brightness Via Software

Interface Introduction

Device & System Support

Raspberry Pi

  • Supports Raspberry Pi OS, 10-point touch, driver free
  • Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
  • Supports Retropie, driver free
  • Supports all versions of Raspberry Pi

Jetson Nano

  • Supports Ubuntu, single point touch, driver free

PC

  • Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Connection Examples

Working With Raspberry Pi 4B

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero 2W

*additional mini HMDI adapter and USB cable are requied

Working With Jetson Nano

Working With Mini PC





  • Size: 10.1″
  • Resolution: 1280×800
  • Display Interface: HDMI
  • Display Panel: IPS
  • Viewing Angle: 178°
  • Touch Type: Capacitive
  • Touch Points: 10-Point
  • Touch Port: USB Type-C
  • Touch Panel: Toughened Glass
  • OSD Menu: Brightness/Contrast
  • Audio:
    • Output 1: 3.5mm Jack
    • Output2: 4PIN Header
  • Touch Panel Tech: Optical Bonding

Κατασκευαστής
Waveshare
Part Number
10.1DP-CAPLCD
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
2kg
Μέγεθος Οθόνης
10.1 "
Ανάλυση
1280x800
Αναλογία Οθόνης
  • 16:9
Χρώμα
  • Colorful
Οθόνη Aφής
Capacitive
Διασύνδεση
  • HDMI
