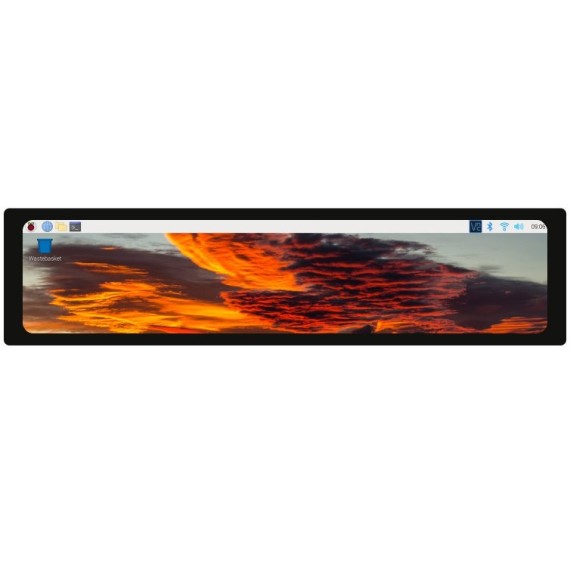

Pi Display 11.9" 320x1480, DSI interface, Capacitive Touchscreen

από WAVESHARE

Οθόνη Ultrawide αφής capacitive 11.9" LCD για Raspberry Pi, με ανάλυση 320x1480, διασύνδεση με DSI MIPI.

31-00022295
Ογκομετρικό βάρος: 1kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
132.80
Χωρίς ΦΠΑ 107.10
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 126.16

ΣΥΝΔΥΑΣΕ ΤΟ ΜΕ

ΠΕΡΙΓΡΑΦΗ

11.9inch Capacitive Touch Display For Raspberry Pi, 320×1480, IPS, DSI Interface

11.9″ Touch Display

Display

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Adjustable Brightness Via Software



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. 11.9inch DSI LCD x1
  2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x2
  3. Screws pack x1
1
23

ΣΗΜΕΙΩΣΕΙΣ

  • The display orientation is portrait by default, 320×1480 resolution (H×V). Change the software config for landscape display.

Design Features

Device & System Support

Raspberry Pi
  • Supports Raspberry Pi OS, 5-points touch, driver required
  • Supports Pi 4B/3B+/3A+, CM3/3+/4
    CM3/3+/4 requires extra adapter board

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Μικτό Βάρος:
1kg
Χώρα Προέλευσης:
Κίνα
Τύπος:
LCD/TFT
Μέγεθος Οθόνης:
11.9"
Ανάλυση:
1480x320
Αναλογία Οθόνης:
  • 21:9
Χρώματα Οθόνης:
Colorful
Οθόνη Aφής:
Capacitive
Διασύνδεση:
  • DSI
Συμβατό Raspberry:
  • CM4
  • Model 4 B
  • Model 3 B+
  • Model 3 A+

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Size: 11.9"
  • Resolution: 320×1480
  • Display Port: DSI
  • Display Panel: IPS
  • Viewing Angle: 170°
  • Touch Type: Capacitive
  • Touch Points: 5-Points
  • Touch Port: I2C
  • Touch Panel: Toughened Glass
