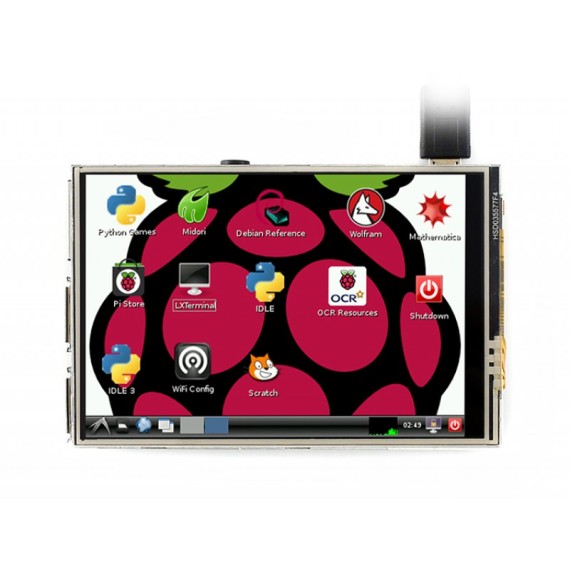

Pi Display 3.5" 480x320 Resistive Touchscreen High-Speed SPI

31-00015811
3.5inch RPi LCD (C)
ΚατασκευαστήςWaveshare Part Number3.5inch RPi LCD (C)
Διαθέσιμο
Αποστολή σε 24 ώρες
2990
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
26.91
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

480x320, 3.5 inch Touch Screen TFT LCD Designed for Raspberry Pi, 125MHz High-Speed SPI



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. 3.5inch RPi LCD (C) x1
  2. Touch pen x1
  3. RPi screws pack (2pcs) x1
123
  • Touch Screen Controller: XPT2046
  • Colors: 65536
  • Backlight: LED
  • Interface
PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16 NC NC
6, 9, 14, 20, 25 GND Ground
11 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
18 LCD_RS Instruction/Data Register selection
19 LCD_SI / TP_SI SPI data input of LCD/Touch Panel
21 TP_SO SPI data output of Touch Panel
22 RST Reset
23 LCD_SCK / TP_SCK SPI clock of LCD/Touch Panel
24 LCD_CS LCD chip selection, low active
26 TP_CS Touch Panel chip selection, low active

  • 480x320 hardware resolution
  • Resistive touch control
  • Supports any revision of Raspberry Pi (directly-pluggable)
  • 125MHz High-Speed SPI signal transmission, clear & stable display effect
  • Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
  • Supports FBCP software driver as well, allows to config software resolution and set up dual-display
  • Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
  • High quality immersion gold surface plating
  • Combined with the Raspberry Pi (refresh rate up to 50Hz), allows you to:
    • Watch videos (multi formats like MP4)
    • Play video games (RetroPie, take a bite)
    • Take photos by touching (up to 17 camera modes)
    • Use software keyboard (system interaction without keyboard/mouse)
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
Waveshare
Μικτό Βάρος
0.072kg
Μέγεθος Οθόνης
3.5 "
Ανάλυση
480x320
Αναλογία Οθόνης
  • 8:5
Χρώμα
  • Colorful
Οθόνη Aφής
Resistive
Διασύνδεση
  • SPI
