Pi Display 5.5" 2K 2560x1440 IPS, HDMI interface, Capacitive Touchscreen

31-00023113
ΚατασκευαστήςWAVESHARE
Διαθέσιμο
Αποστολή σε 24 ώρες
€8990
WAVESHARE
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€85.41
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

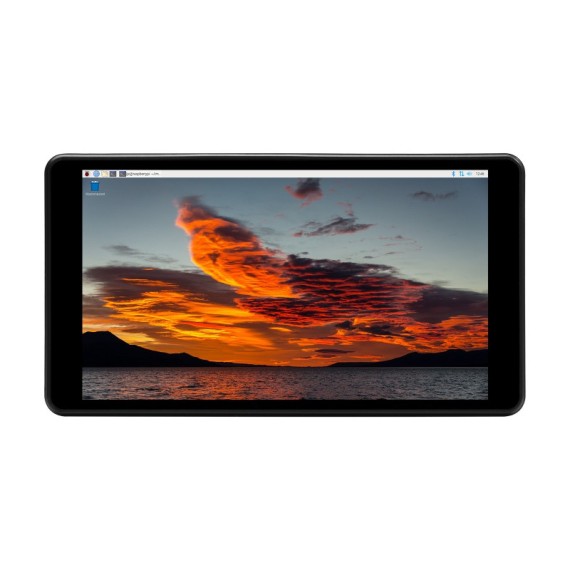

Raspberry Pi 5.5inch 2K Capacitive Touch LCD Display, HDMI Interface, IPS Screen, 1440×2560, Toughen Glass Panel, With Case

5.5″ 2K Touch Display

  • High Resolution
  • Multi-Touch
  • Full Color

IPS Display Panel
Excellent Display & Color Performance

2K High Resolution
1440 X 2560 Pixels
Optical Bonding, Dust-Proof And Clearer Display

Capacitive 10-Point Touch
Support 10-Point Touch, The Actual Number Of Touch Points Is Related
To The Software And System
Toughened Glass Panel, Hardness Up To 6H

Interface Introduction

Device & System Support

Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali, single point touch, driver free

PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

  • For the moment, only the Raspberry Pi 4B and CM4 have adequate CPU performance to drive this 2K display completely.
  • Support more powerful future versions as long as its GPU performance is equivalent to or better than the Pi 4B.
  • Limited by the hardware, when working with Raspberry Pi 3B+/Pi 3B/Zero 2w/Zero w, only supports default portrait display and cannot be rotated.
  • The case only supports Raspberry Pi 4B.

Connection Examples

Working With Raspberry Pi 4B

The Display Only

The Display With Case

Working With Compute Module 4

Working With Mini PC

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. 5.5inch 1440x2560 LCD x1
  2. Black ABS case x1
  3. Cooling fan x1
  4. HDMI to Micro HDMI adapter (C) x1
  5. USB adapter (D) x1
  6. Screws pack x1



ΣΗΜΕΙΩΣΕΙΣ

  • The display orientation is portrait by default, 1440×2560 resolution (H×V). Change the software config for landscape display.
  • Raspberry Pi 4B and CM4 are not included
  • Size: 5.5″
  • Resolution: 1440×2560
  • Display Port: HDMI
  • Display Pane: lIPS
  • Viewing Angle: 170°
  • Touch Type: Capacitive
  • Touch Points: 10-Point
  • Touch Port: USB
  • Touch Panel: Toughened Glass
  • Touch Panel Tech: Optical Bonding
  • Audio Output
    • 3.5mm Jack
    • 4PIN Header

Κατασκευαστής
WAVESHARE
Μικτό Βάρος
0.817kg
Μέγεθος Οθόνης
5.5 "
Ανάλυση
2560x1440
Αναλογία Οθόνης
  • 16:9
Χρώμα
  • Colorful
Οθόνη Aφής
Capacitive
Διασύνδεση
  • HDMI
