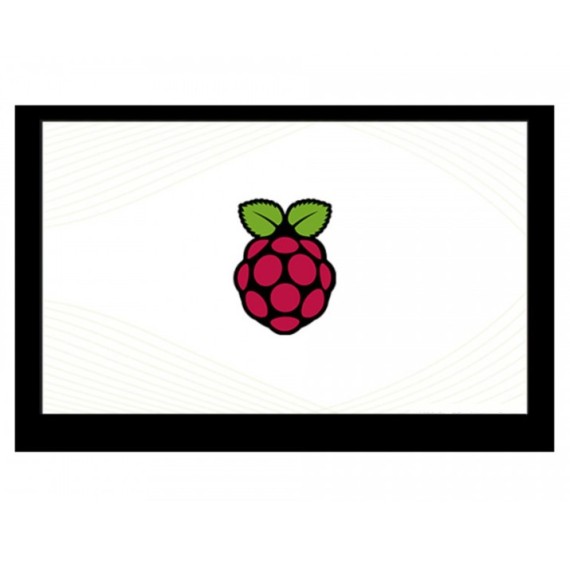

Pi Display 5" 800x480, DSI interface, Capacitive Touchscreen

5inch Capacitive Touch Display for Raspberry Pi, 800×480, IPS Wide Angle, MIPI DSI Interface 5" Touch Display   Device & System Support...
31-00018396
Gross Weight: 0.21kg
Company: Waveshare
Part Number: 18396
Made in: China
Out of Stock
Product out of stock
No stock in retail store
49.90
Without VAT 40.24

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

5inch Capacitive Touch Display for Raspberry Pi, 800×480, IPS Wide Angle, MIPI DSI Interface

5" Touch Display

 Device & System Support



  Raspberry Pi
  • Supports Raspbian, 5-points touch, driver free
  • Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
  • Supports Retropie, driver free
  • Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+*
* CM3/3+ requires extra adapter board Hookup Example

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Display Touch Control
  • Up to 5-points touch, depending on the operating system.



THE PACKAGE INCLUDES

  1. 5inch DSI LCD x1
  2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
  3. Screws pack x1



SPECIFICATIONS

Type:
IPS LCD
Display Size:
5"
Resolution:
800x480
Aspect Ration:
  • 16:10
Display Color:
Colorful
Touchscreen:
Capacitive
Interface:
  • DSI
Raspberry Compatible:
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Model 2 B

SPECIFICATIONS

  • Size: 5"
  • Resolution: 800×480
  • Display Port: DSI
  • Touch Type: Capacitive
  • Touch Points: 5-Points
  • Touch Port: I2C
  • Touch Panel: Toughened Glass
  • Power Consumption: Low Power

FILES
