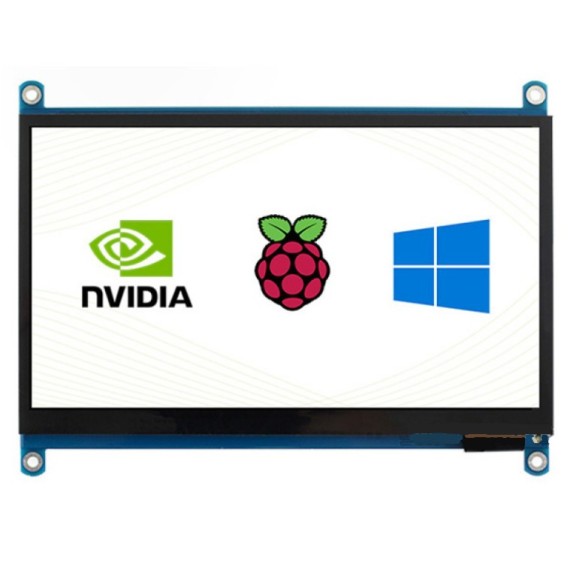

Pi Display 7" HDMI 1024x600 IPS Capacitive Touchscreen USB

από WAVESHARE
Οθόνη αφής capacitive 7" LCD για Raspberry Pi, με ανάλυση 1024x600 και IPS πάνελ, έχει χαμηλή κατανάλωση ενέργειας, διασύνδεση με HDMI, μπορεί να υποστηρίξει διάφορες συσκευές και συστήματα.
31-00014628
Ογκομετρικό βάρος: 0.4kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: WHS14628
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
69.90
Χωρίς ΦΠΑ 56.37
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 62.91

ΠΕΡΙΓΡΑΦΗ

7inch Capacitive Touch Screen LCD (H), 1024×600, HDMI, IPS, Various Devices & Systems Support

7" HDMI Touch Display

Device & System Support

Raspberry Pi
  • Supports Raspbian, 5-points touch, driver free
  • Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
  • Supports Retropie, driver free
  • Supports all versions of Raspberry Pi
Jetson Nano
  • Supports Ubuntu, single point touch, driver free
PC
  • Supports Windows 10 / 8.1 / 8 / 7, 5-points touch, driver free
Game Console
  • Xbox360, PS4, Switch...

Display

IPS Panel

Touch Control


1) up to 5-points touch, depending on the operating system.



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. 7inch HDMI LCD (H) x1
  2. HDMI cable x1
  3. HDMI to Micro HDMI Adapter x1
  4. USB type A plug to micro B plug cable x1
  5. RPi screws pack (4pcs) x 1
  6. Quick start sheet x1
123
456

Enjoy Gaming

* audio output via earphone/speaker port.

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With AI Computer Jetson Nano

Working With Mini PC

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Part Number:
WHS14628
Μικτό Βάρος:
0.398kg
Χώρα Προέλευσης:
Κίνα
Τύπος:
IPS LCD
Μέγεθος Οθόνης:
7"
Ανάλυση:
1024x600
Αναλογία Οθόνης:
  • 16:10
Χρώματα Οθόνης:
Colorful
Οθόνη Aφής:
Capacitive
Διασύνδεση:
  • HDMI
Συμβατό Raspberry:
  • Pi 400
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Zero
  • Zero W

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Size: 7"
  • Resolution: 1024×600
  • Display Port: HDMI / VGA
  • Display Panel: IPS
  • Viewing Angle: 170°
  • Touch Type: Capacitive
  • Touch Points: 5-Points
  • Touch Port: USB
  • OSD Menu: Brightness/Contrast
  • Audio Output1: 3.5mm Jack
  • Audio Output2: 4PIN Header
  • Gaming: Xbox360/PS4/Switch

ΔΥΝΑΤΟΤΗΤΕΣ

  1. LCD FFC cable anti-interference design, more stable for industrial application
  2. VCOM voltage adjustment for optimizing display effect
  3. USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
  4. 4~5.5V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage
  5. One-way isolation circuit. When powered from Touch port, the 5V voltage from Touch port will provide power supply for both touch function and display circuit. When powered from Power Only port, the Touch port will provide power supply for just touch function, and the other circuit will be powered via Power Only port. The two power inputs are totally isolated to prevent any breakdown
  6. Two audio outputs for earphone and speaker, each track of speaker supports 2.6W PA circuit
  7. OSD menu config buttons for adjusting backlight and display color
  8. DC-DC LCD driver circuit, low heating on long term operation
  9. VGA port to support VGA devices
