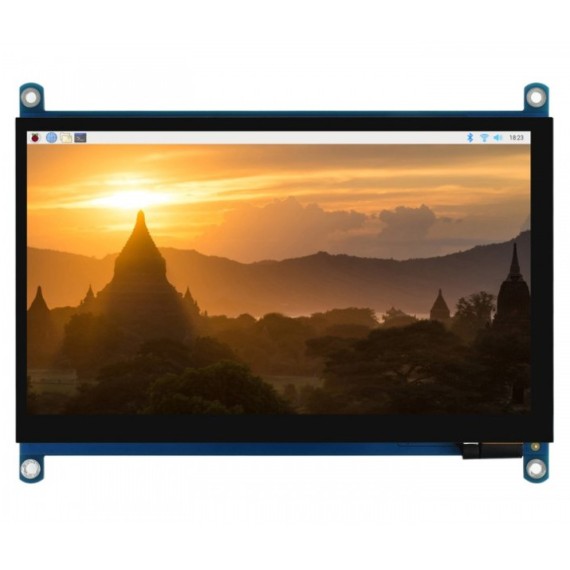

Pi Display QLED 7" HDMI 1024x600 IPS Capacitive Touchscreen USB

από WAVESHARE
Οθόνη αφής capacitive 7" QLED Quantum Dot Display με ανάλυση 1024x600, πλαίσιο από σκληρυμένο γυαλί για μεγαλύτερη ανθεκτικότατα, μπορεί να υποστηρίξει διάφορες συσκευές και συστήματα. Με κρυστάλλινη εικόνα ιδανική ακόμα και για τα πιο απαιτητικά gaming projects.
31-00018625
Ογκομετρικό βάρος: 0.43kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
79.90
Χωρίς ΦΠΑ 64.44
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 75.91

ΠΕΡΙΓΡΑΦΗ

7inch QLED Quantum Dot Display, Capacitive Touch, 1024×600, G+G Toughened Glass Panel, Various Devices & Systems Support

QLED Panel

QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: NTSC 78%, SRGB 92%

More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

Device & System Support

Raspberry Pi

  • Supports Raspbian, 5-points touch, driver free
  • Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
  • Supports Retropie, driver free
  • Supports all versions of Raspberry Pi

Jetson Nano

  • Supports Ubuntu, single point touch, driver free

PC

  • Supports Windows 10 / 8.1 / 8 / 7, 5-points touch, driver free

Game Console

  • Xbox360, PS4, Switch...



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. 7HP-CAPQLED x1
  2. HDMI cable x1
  3. HDMI to Micro HDMI Adapter x1
  4. USB type A plug to micro B plug cable x1
  5. RPi screws pack (4pcs) x 1
12345

Touch Control

1) up to 5-points touch, depending on the operating system.
2) up to 6H hardness G-G toughened glass panel.

Backlight Control

The Backlight Brightness Is Adjustable Via Software

Enjoy Gaming

* audio output via earphone/speaker port.

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With AI Computer Jetson Nano

Working With Mini PC






ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Μικτό Βάρος:
0.428kg
Χώρα Προέλευσης:
Κίνα
Τύπος:
IPS QLED
Μέγεθος Οθόνης:
7"
Ανάλυση:
1024x600
Αναλογία Οθόνης:
  • 16:10
Χρώματα Οθόνης:
Colorful
Οθόνη Aφής:
Capacitive
Διασύνδεση:
  • HDMI
Συμβατό Raspberry:
  • Pi 400
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Zero
  • Zero W

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Size: 7"
  • Resolution: 1024×600
  • Display Port: HDMI
  • Display Panel: IPS
  • Viewing Angle: 170°
  • Backlight: QLED Quantum Dot
  • Touch Type: Capacitive
  • Touch Points: 5-Points
  • Touch Port: USB
  • Touch Panel: G+G Toughened Glass
  • OSD Menu: Brightness/Contrast
  • Audio Output
    • 1: 3.5mm Jack
    • 2: 4PIN Header
  • Gaming: Xbox360/PS4/Switch

ΔΥΝΑΤΟΤΗΤΕΣ

  1. LCD FFC cable anti-interference design, more stable for industrial application
  2. VCOM voltage adjustment for optimizing display effect
  3. USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
  4. 4~5.5V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage
  5. Low dropout ideal diode isolation, when both the Touch and Power Only are connected to a power source, only the one with more power capability will be used as power supply. The two power inputs are totally isolated to prevent any breakdown
  6. Two audio outputs for earphone and speaker, each track of speaker supports 2.6W PA circuit
  7. OSD menu config buttons for adjusting backlight (via software) and display color
  8. DC-DC LCD driver circuit, low heating on long term operation
