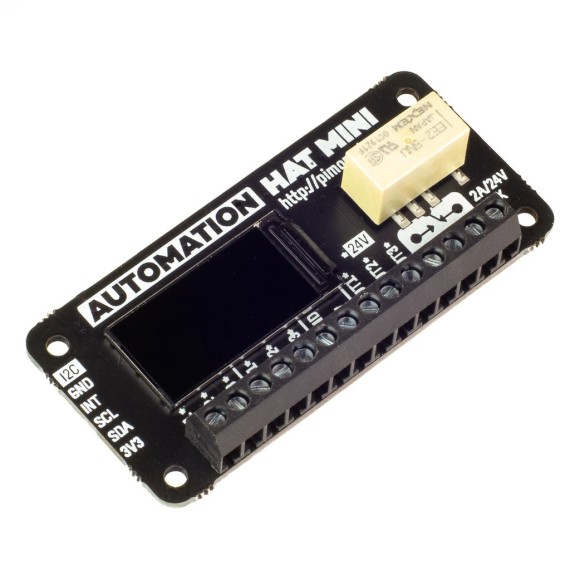

Pimoroni Automation HAT Mini

από PIMORONI
Αυτοματοποιήστε τον κόσμο σας με το Automation HAT Mini! Παρακολουθήστε και ελέγξτε έως και συστήματα 24V και δείτε την κατάστασή τους στην πανέμορφη...
13-00013918
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: PIMORONI
Part Number: PIM487
Χώρα Προέλευσης: Ηνωμένο Βασίλειο
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
29.30
Χωρίς ΦΠΑ 23.63
+

ΠΕΡΙΓΡΑΦΗ

Αυτοματοποιήστε τον κόσμο σας με το Automation HAT Mini! Παρακολουθήστε και ελέγξτε έως και συστήματα 24V και δείτε την κατάστασή τους στην πανέμορφη έγχρωμη οθόνη.

Μην ξεγελιέστε από το μέγεθός του... Το Automation HAT Mini διαθέτει πολλές λειτουργίες. Διαθέτει ρελέ, τρεις εισόδους buffered, τρεις εξόδους και τρεις αναλογικές εισόδους, όλες ανθεκτικές στα 24V. Τελευταίο αλλά όχι λιγότερο σημαντικό, διαθέτει μια όμορφη IPS LCD έγχρωμη 0.96" για να εμφανίζει την κατάσταση των συστημάτων σας.

Το Automation HAT Mini είναι ιδανικό για έργα οικιακού αυτοματισμού, δίνοντας στους έξυπνους ψεκαστήρες του θερμοκηπίου σας, για τον προγραμματισμό της σίτισης ψαριών σας ή για τον έλεγχο συστημάτων φωτισμού χαμηλής τάσης.



ΣΗΜΕΙΩΣΕΙΣ

  • Τα φορτία για τις εξόδους πρέπει να εναλλάσσονται στην πλευρά της γείωσης, δηλαδή 12/24V (από τροφοδοσία) -> φορτίο -> τερματικό εξόδου -> γείωση (από τροφοδοσία)
  • Το ρελέ μπορεί να αντέξει έως και 2Α το καθένα και πρέπει να ενεργοποιηθεί στην υψηλή (high) πλευρά
  • Οι έξοδοι βύθισης μπορούν να βυθίσουν ένα μέγιστο σύνολο 500mA στις 3 εξόδους, οπότε αν χρησιμοποιείτε ένα κανάλι μπορείτε να βυθίσετε ολόκληρα τα 500mA σε αυτό.
  • Η ακρίβεια του ADC είναι ± 2%.
  • Μην το χρησιμοποιείτε για εναλλαγή τάσεων δικτύου!

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • Automation
Κατασκευαστής
:
PIMORONI
Part Number:
PIM487
Μικτό Βάρος:
0.02kg
Χώρα Προέλευσης:
Ηνωμένο Βασίλειο
Συμβατό Raspberry:
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Zero
  • Zero W

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • 0.96" colour LCD (160x80)
  • 1x 24V @ 2A relay (NC and NO terminals)
  • 3x 12-bit ADC @ 0-24V (ADS1015) (±2% accuracy)
  • 3x 24V tolerant buffered inputs
  • 3x 24V tolerant sinking outputs
  • 3.5mm screw terminals
  • Pimoroni breakout-compatible pin header
  • Mini HAT-format board
  • Fully-assembled (no soldering required)
  • Compatible with all 40-pin header Raspberry Pi models
  • Python library
  • Dimensions: 65x30x16.8mm

ΔΥΝΑΤΟΤΗΤΕΣ

Automate your world!

All of the inputs and outputs, and the relay, on Automation HAT Mini are 24V-tolerant and many low-voltage systems in home devices (and also in cars) run on either 12V or 24V. Automation HAT Mini is a great way to monitor and control them.

Use the buffered inputs to sense the on/off state of your devices, or get more granularity with the analog inputs that measure the input voltage with 12-bit accuracy. The sinking outputs can sink a total of 500mA across the three channels. For higher-current loads, you can use the relay that can tolerate up to 2A at 24V, and take advantage of the normally-open or normally-closed sides to give the correct failover state.



We've added a female header on the underside of the board with the correct pinout for our Pimoroni breakout range. This opens up a whole host of nifty possibilities!

Pop an I2C Breakout Extender into the header, and then you can easily pop in one of our breakouts. No soldering necessary!

Use an LTR-559 Light and Proximity Sensor to turn a device on automatically when it gets light or dark, or a BME680 Temperature, Pressure, and Humidity Sensor to trigger at a specific temperature or humidity threshold.

ΑΡΧΕΙΑ

Software

As usual, we've made a super-simple to use Python library to take advantage of all of Automation HAT Mini's functions, with examples to get you started.

We've added support for the 0.96" LCD to our Automation HAT library so, when you run the installer, everything you need will be set up and installed. Nifty!



Our examples show you how to use all of the different functions on Automation HAT Mini and how to display their status on the LCD. Check out our Getting Started tutorial for more details!
