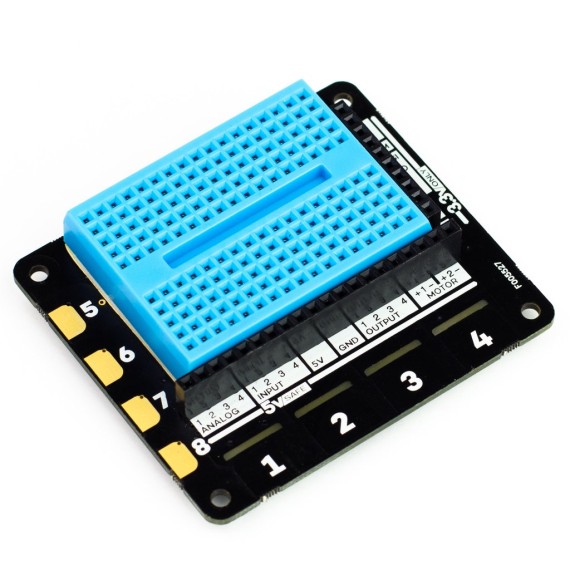

Pimoroni Explorer HAT Pro

από PIMORONI
Το Explorer HAT Pro προσθέτει πολλά χρήσιμα εργαλεία στο Raspberry Pi σας. Διαθέτει ψηφιακές εισόδους και εξόδους, χωρητικές επιφάνειες αφής, croc. clip συμβατά pads με κλιπ, έγχρωμα LEDs, αναλογικές εισόδους, motor drivers και ένα μίνι breadboard για τη δημιουργία πρωτοτύπων των έργων σας. Ιδανικό για μικρά ρομπότ, παιχνίδια, επιστημονικά πειράματα, εξερεύνηση μικρών ηλεκτρονικών κυκλωμάτων και αλληλεπίδραση με το Pi εσάς.
13-00012897
Ογκομετρικό βάρος: 0.04kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: PIMORONI
Part Number: PIM082
Χώρα Προέλευσης: Ηνωμένο Βασίλειο
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
27.40
Χωρίς ΦΠΑ 22.10
+

ΠΕΡΙΓΡΑΦΗ

Explorer HAT Pro adds a lot of useful tools to your Raspberry Pi. It has digital inputs and outputs, capacitive touch pads, croc. clip compatible pads, coloured LEDs, analog inputs, motor drivers, and a mini breadboard for prototyping your projects. Great for little robots, games, science experiments, exploring small electronic circuits, and interacting with you Pi.

We've put together a handy little Explorer HAT Pro parts kit with everything you need to get started building circuits including LEDs, dials, a buzzer, and even a temperature sensor! Explorer HAT Pro also goes great with our no-soldering-required micro metal gearmotors and our STS-Pi robot kit.

Software

We've made it super-quick to get to grips with Explorer HAT Pro with our Python library, including a bunch of examples to show off all of Explorer HAT Pro's functions.

ΣΗΜΕΙΩΣΕΙΣ

  • Comes fully assembled
  • The inputs use a 5-channel buffer that will accept anything from 2V-5V as logic high
  • Mini breadboard had 170 points, 17x5 per half of the breadboard

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • Prototyping
Κατασκευαστής
:
PIMORONI
Part Number:
PIM082
Μικτό Βάρος:
0.04kg
Χώρα Προέλευσης:
Ηνωμένο Βασίλειο
Συμβατό Raspberry:
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Model 2 B
  • Zero
  • Zero W

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Four buffered 5V tolerant inputs (perfect for Arduino compatibility)
  • Four powered 5V outputs (up to 500mA total across all four channels)
  • Four capacitive touch pads (labelled 1, 2, 3, 4)
  • Four capacitive crocodile clip pads (labelled 5, 6, 7, 8)
  • Four coloured LEDs (red, green, blue, and yellow)
  • Four analog inputs
  • Two H-bridge motor drivers (up to 200mA per channel; soft PWM control)
  • A heap of useful (unprotected) 3v3 goodies from the GPIO
  • A mini breadboard on top!
  • Explorer HAT Pro pinout
  • Compatible with Raspberry Pi 3, 2, B+, A+, Zero, and Zero W
  • Python library
