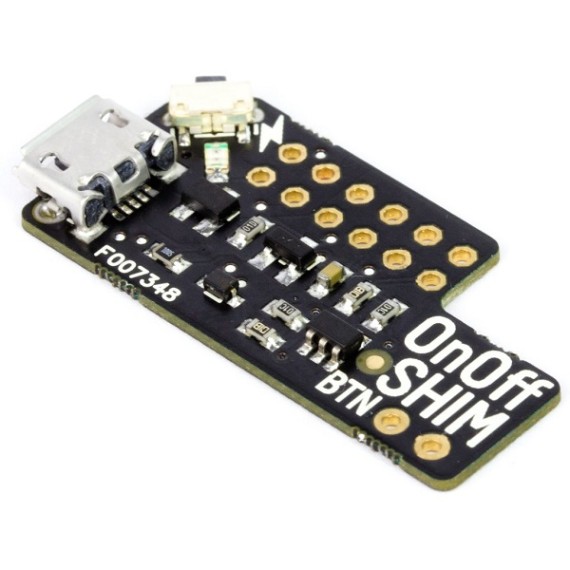

Pimoroni On/Off SHIM

από PIMORONI
Add a tiny yet convenient power switch to your Pi with On/Off SHIM! Our SHIMs (Shove Hardware in the Middle) are a new range of boards designed to be...
13-00026913
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: PIMORONI
Part Number: PIM269
Χώρα Προέλευσης: Ηνωμένο Βασίλειο
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
9.90
Χωρίς ΦΠΑ 7.98
+

ΠΕΡΙΓΡΑΦΗ

Add a tiny yet convenient power switch to your Pi with On/Off SHIM!

Our SHIMs (Shove Hardware in the Middle) are a new range of boards designed to be small, affordable, and handy. They're just 0.8mm thick (the bare board, not including mounted components) and designed to be soldered straight onto the GPIO pins of your Pi, if you wish, so that you can use them with HATs and pHATs on top.

ΣΗΜΕΙΩΣΕΙΣ

  • Requires soldering!

Usage
Just plug your micro-USB power supply into the micro-B connector on OnOff SHIM, and then press the button once to switch on power and boot up your Pi. After installing our software (details below), you can press and hold the button for one second to initiate a clean shutdown and completely cut the power to your Pi.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • Power Supply
Κατασκευαστής
:
PIMORONI
Part Number:
PIM269
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Ηνωμένο Βασίλειο
Συμβατό Raspberry:
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Model B+
  • Zero
  • Zero W

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Super-small SHIM-format board
  • 0.8mm thick PCB
  • Can be used with HATs and pHATs
  • Corner-mounted push button for on/off
  • Micro-B connector for power supply
  • Red status LED
  • Optional breakout pins to connect an external momentary button
  • 2x6 female header included
  • Supports up to 2.5A power supply
  • Software daemon to shutdown cleanly

ΑΡΧΕΙΑ

Software

We've put together a one-line-installer to install the clean shutdown daemon. It watches the state of BCM pin 17 and, when pulled low (pressed), it initiates a clean shutdown. Last thing, just before your Pi shuts down, BCM pin 4 is pulled low to completely cut power to your Pi.

  • To install the software, open a terminal and type: curl https://get.pimoroni.com/onoffshim | bash to run the one-line-installer.

Our software does not support Raspbian Wheezy.
