Pimoroni Pico HAT Hacker

από PIMORONI
The Black HAT Hacker in bijou form. It's Pico HAT Hacker! Pico HAT Hacker gives you full access to all 40 pins on your Pi, broken out at the top. It's a...
13-00030099
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: PIMORONI
Part Number: PIM300
Χώρα Προέλευσης: Ηνωμένο Βασίλειο
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
3.90
Χωρίς ΦΠΑ 3.15
+

ΠΕΡΙΓΡΑΦΗ

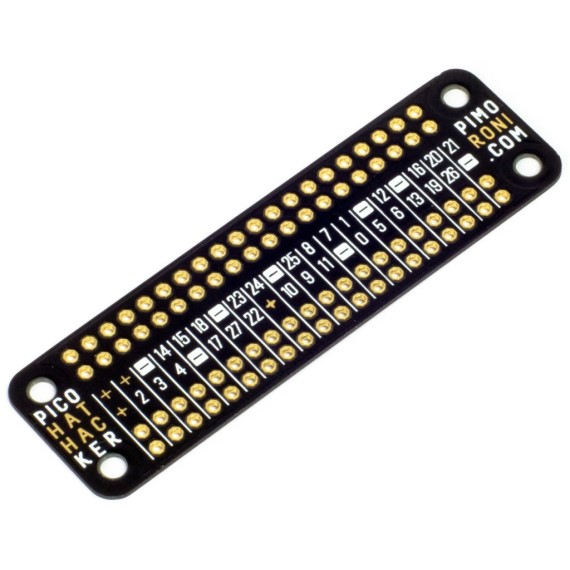

The Black HAT Hacker in bijou form. It's Pico HAT Hacker! Pico HAT Hacker gives you full access to all 40 pins on your Pi, broken out at the top. It's a super-skinny 0.8mm PCB, like our SHIMs, so you can solder it right onto the pins on your Pi and still have enough height on a standard header to fit a HAT or pHAT on top. There's handy labels for all of the pins, with BCM pin numbering on one side, and more descriptive labels on the other to show where the I2C, UART, SPI, PWM, and I2S pins are. You can solder the Pico HAT Hacker either way up, depending on which set of labels you find most useful.

ΣΗΜΕΙΩΣΕΙΣ

  • You'll need to pick up an extra 40-pin male header to solder onto Pico HAT Hacker
  • Be sparing with the solder when soldering Pico HAT Hacker onto the pins of your Pi, otherwise the solder will wick up the pins and you'll find it awkward to fit HATs/pHATs on top

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • Prototyping
Κατασκευαστής
:
PIMORONI
Part Number:
PIM300
Μικτό Βάρος:
0.004kg
Χώρα Προέλευσης:
Ηνωμένο Βασίλειο
Συμβατό Raspberry:
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Model 2 B
  • Zero
  • Zero W

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • BCM and descriptive pin labelling
  • Mounting holes (M2.5)
  • 0.8mm thick PCB
  • Compatible with Raspberry Pi 3, 2, B+, A+, Zero, and Zero W
  • Dimensions: 65x19x0.8mm
