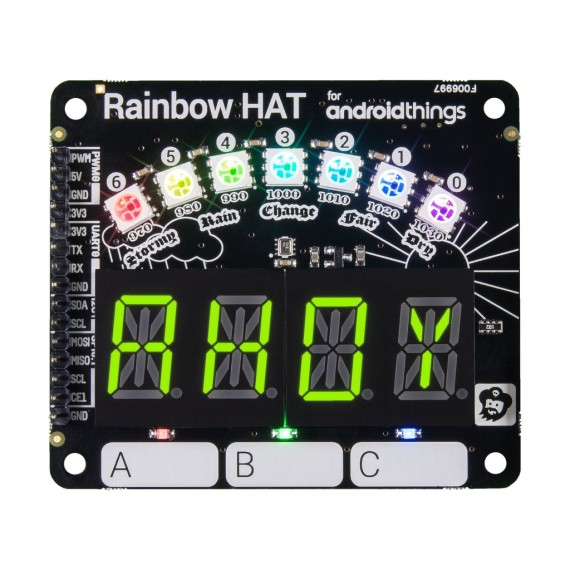

Pimoroni Rainbow HAT

Rainbow HAT has a buffet of sensors, inputs and displays. Use it as a weather station, a clock, a timer or stopwatch, a mood light, or endless other...
13-00012907
Gross Weight: 0kg
Company: Pimoroni
Part Number: PIM242
Made in: UK
In Stock
Ships in 24 Hours
No stock in retail store
28.00
Without VAT 22.58
+
WISHLIST COMPARE

DESCRIPTION

Rainbow HAT has a buffet of sensors, inputs and displays. Use it as a weather station, a clock, a timer or stopwatch, a mood light, or endless other things.

We've worked with the Android Things team at Google to create this great add-on board that features displays, sensors, sound, and lots of LEDs! It's the perfect introduction to developing Android Things applications on the Raspberry Pi.

Rainbow HAT also has a full Python API for use on Raspberry Pi OS just like all of our other HATs that you know and love!

The board is designed specifically to show off the wide range of protocols available on the Raspberry Pi, including SPI (the APA102 LEDs), I2C (the BMP280 sensor and 14-segment displays), GPIO (the capacitive touch buttons and LEDs), and PWM (the piezo buzzer).



NOTES

  • Temperature readings are affected by heat radiated from your Pi’s CPU and the onboard LEDs; calibration can help to correct temperature readings. bstrobl, on the Raspberry Pi forums, suggests to use the formula:
    1. corrected temp. = measured temp. - (CPU temp. - measured temp.)
    2. Using a Mini Black HAT Hack3r can also help.

SPECIFICATIONS

HAT Type:
  • Automation
  • Display
  • I2C Control
  • Sensor
Raspberry Compatible:
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Zero
  • Zero W

SPECIFICATIONS

  • Seven APA102 multicolour LEDs
  • Four 14-segment alphanumeric displays (green LEDs)
  • HT16K33 display driver chip
  • Three capacitive touch buttons
  • Atmel QT1070 capacitive touch driver chip
  • Blue, green and red LEDs
  • BMP280 temperature and pressure sensor

* Please note that if you're using Rainbow HAT with a Raspberry Pi with PoE pins (that's models 3B+ and later), then you'll need to use a set of stand-offs to ensure that the new PoE pins do not contact components on the underside of Rainbow HAT.

FILES

Using Android Things?

Please note that Google are in the process of discontinuing Android Things. You can still use all the goodies on Rainbow HAT with our Python library!

For information on how to get started with Android Things and Rainbow HAT visit the official developer site for Android Things. To put the latest Android Things image on your SD card, see the instructions here. You can find the driver and samples published in the official GitHub organisation: https://github.com/androidthings

Using Raspberry Pi OS?

You don't have to use Android Things with your Rainbow HAT, we’ve also put together our usual Python library to give you access to all its functions. You can find it here.

If you're interested in controlling your Rainbow HAT from a web page check out this tutorial - it shows you how to incorporate web app functionality into your Python code using Anvil's drag and drop app designer.
