Τροφοδοτικό Πάγκου 1-Καναλιού 0-30V 0-3A - UNI-T UTP3313TFL-II

από UNI-T
UTP3313TFL-II is a linear DC power supply with a classic transformer. Maximum voltage 30V DC, max. Current 3A DC. This type of power supply is an ideal...
24-00042155
Ογκομετρικό βάρος: 3.8kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: UNI-T
Part Number: UTP3313TFL-II
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
99.90
Χωρίς ΦΠΑ 80.56
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 89.91

ΠΕΡΙΓΡΑΦΗ

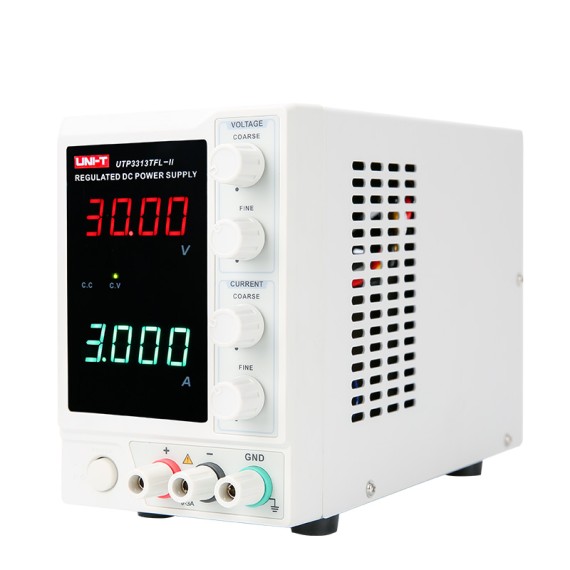

UTP3313TFL-II is a linear DC power supply with a classic transformer. Maximum voltage 30V DC, max. Current 3A DC. This type of power supply is an ideal tool for university and technical schools, electronics production lines, home appliances repairers, do-it-yourselfers etc.

Two 4-digit LED displays for simultaneous display of voltage (red) and current (white), reverse polarity protection, short-circuit protection, overload protection. When the internal temperature of the transformer reaches 130 ° C, the reversible thermal fuse cuts off the transformer power supply and automatically reconnects the power supply when the temperature drops. The device can be operated as a constant voltage source or as a constant current source. Coarse and fine voltage regulation with a resolution of 10mV, coarse and fine regulation of current limitation with a resolution of 1mA. Terminals +, - are galvanically separated from the source housing and the ground conductor, if necessary, one pole can be connected to the ground terminal. The maximum ripple (noise) of the DC voltage is 1mV rms and 3mA rms.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
UNI-T
Part Number:
UTP3313TFL-II
Μικτό Βάρος:
3.8kg
Χώρα Προέλευσης:
Κίνα
Τύπος οθόνης:
2x LCD 4 digits
Αριθμός καναλιών:
1
Είδος τροφοδοτικού:
Γραμμικό (Linear)
Τάση εξόδου:
0...30V DC
Ένταση εξόδου:
0...3A
Ανάλυση έντασης εξόδου:
0.01A
Voltage stabilisation:
≤0,01% + 3mV
Current stabilisation:
≤0.5%+5mA
Τροφοδοσία εισόδου:
110V/220V±5%, AC50Hz/60Hz
