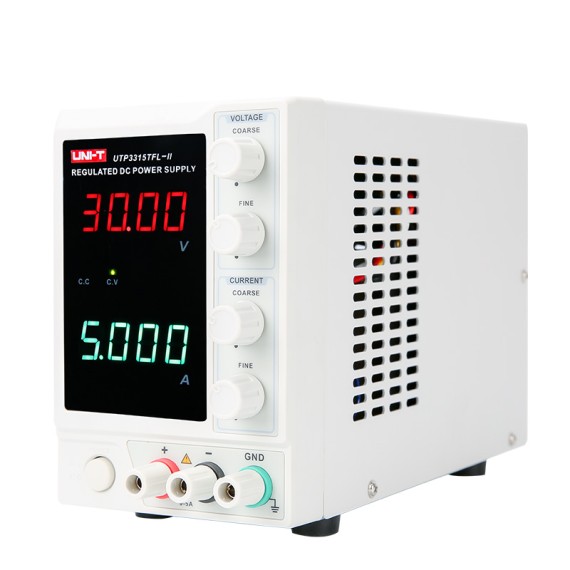

Power Supply 1-CH 0-30V 0-5A - UNI-T UTP3315TFL-II

by UNI-T
UTP3315TFL-II is a linear DC power supply with a classic transformer. Maximum voltage 30V DC, max. Current 5A DC. This type of power supply is an ideal...
24-00014221
Warranty: 2 Year Manufacturer Warranty
Company: UNI-T
Part Number: UTP3315TFL-II
Made in: China
Out of Stock
Product out of stock
No stock in retail store
86.90
Without VAT 70.08

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

UTP3315TFL-II is a linear DC power supply with a classic transformer. Maximum voltage 30V DC, max. Current 5A DC. This type of power supply is an ideal tool for university and technical schools, electronics production lines, home appliances repairers, do-it-yourselfers etc.

Two 4-digit LED displays for simultaneous display of voltage (red) and current (white), reverse polarity protection, short-circuit protection, overload protection. When the internal temperature of the transformer reaches 130 ° C, the reversible thermal fuse cuts off the transformer power supply and automatically reconnects the power supply when the temperature drops. The device can be operated as a constant voltage source or as a constant current source. Coarse and fine voltage regulation with a resolution of 10mV, coarse and fine regulation of current limitation with a resolution of 1mA. Terminals +, - are galvanically separated from the source housing and the ground conductor, if necessary, one pole can be connected to the ground terminal. The maximum ripple (noise) of the DC voltage is 2mV rms and 3mA rms.

SPECIFICATIONS

Type of display used:
2x LCD 4 digits
Kind of power supply:
Linear
Number of channels:
1
Output voltage:
0...30V DC
Output current:
0...5A
Voltage stabilisation:
≤0,01% + 5mV
Current stabilisation:
≤0.1%+10mA
Dimensions:
105 x 165 x 249mm
Power supply:
110V/220V±5%, AC50Hz/60Hz

SPECIFICATIONS

  • Single channel, 4-bit digital display, shows voltage and current simultaneously
  • Voltage display resolution: 100mV; current display resolution: 10mA
  • Voltage output: 0~30V consecutive and adjustable voltage
  • Current output: 0~5A
  • Auto voltage and current stabilization conversion, current limiting protection, undamaged for any external usage
