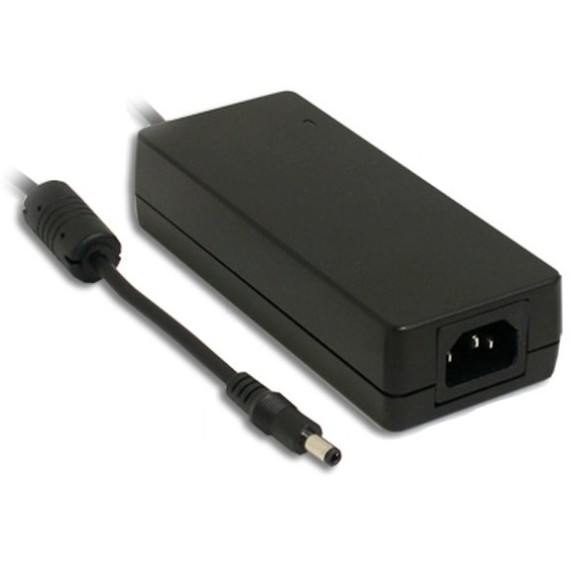

Power Supply 24V 3.75A - Output 5.5x2.5 MeanWell - GST90A24-P1M

48-00012126
Company: MeanWell
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
39.90
Without VAT 32.18
+
WISHLIST COMPARE

SPECIFICATIONS

Power:
90Watt
Output Voltage:
24V DC
Output Current:
3.75Amp
Supply Voltage:
  • 110...220V AC
Protection:
  • anti-overvoltage
  • overheating
  • overload
  • short-circuit
Number of Outputs:
1
Efficiency:
90%
Output connector:
  • Jack 5.5x2.5

EXTRA SPECIFICATIONS

  • Type of power supply unit: Switched-mode
  • Output voltage: 24V DC
  • Maximum output current: 3.75A
  • Kind of output connector: 5.5/2.5
  • Power: 90W
  • Supply voltage: 90...264V AC, 127...370V DC
  • Kind of case: Desktop
  • Kind of power supply: Voltage source
  • Operating temperature: -30...70°C
  • Kit contents: Eithout power cable
  • Protection: Anti-overload, Anti-overvoltage, Short circuit protection, Overheating
  • Conform to the norm: Energy efficiency Level VI
  • Connector variant: Straight
  • Kind of input connector: IEC C14
  • Efficiency: 90%
  • Polarisation: Positive inner pin

Dimensions

  • 145 x 60 x 32mm
  • Length of output cable: 1.2m
