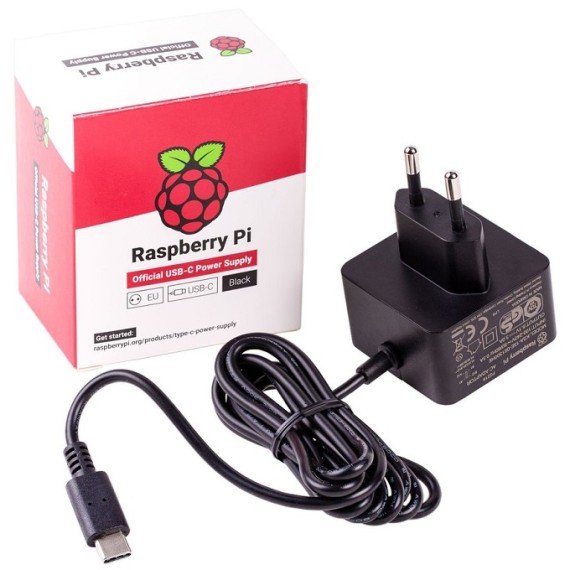

Power Supply 5V 3A - Raspberry Pi 4 Official (Black)

The official Raspberry Pi USB-C power supply is designed to power the latest Raspberry Pi 4 Model B boards, which were released in June 2019. This...
06-00012105
Company: Raspberry
Made in: China
In Stock
Ships in 24 Hours
Available in store
9.90
Without VAT 7.98
+
WISHLIST COMPARE

DESCRIPTION

The official Raspberry Pi USB-C power supply is designed to power the latest Raspberry Pi 4 Model B boards, which were released in June 2019.

This power adapter is ideally suited for powering the Raspberry Pi 4, because now for full operation, without any problems in powering it and plugging it, you need a 15.3W transformer.

SPECIFICATIONS

Raspberry Compatible:
  • Model 4 B

EXTRA SPECIFICATIONS

  • Input
    • Voltage range: 100-240Vac (rated) 96-264Vac (operating)
    • Frequency: 50/60Hz ±3Hz
    • Current: 0.5A maximum
    • Power consumption (no load): 0.075W maximum
    • Inrush current: No damage shall occur and the input fuse shall not blow
  • Output
    • Output voltage: +5.1V DC
    • Minimum load current: 0A
    • Nominal load current: 3.0A
    • Maximum power: 15.3W
    • Load regulation: ±5%
    • Line regulation: ±2%
    • Ripple & noise: 120mVp-p
    • Rise time: 100ms maximum to regulation limits for DC outputs
    • Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
    • Protection: Short circuit protection - Overcurrent protection -Over temperature protection
    • Efficiency: 81% minimum (output current from 100%, 75%, 50%, 25%) 72% minimum at 10% load
    • Output cable: 1.5m 18AWG
    • Output connector: USB Type-C
  • Color: Black

DOCUMENTS
