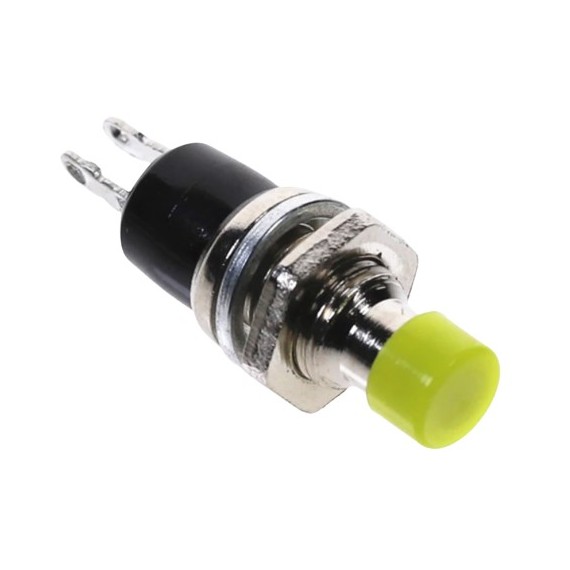

Push Button Small 7mm - Momentary Yellow

29-00030197
PBS-10B-2
CompanyOem Part NumberPBS-10B-2
In Stock
Ships in 24 Hours
040
Our quantity discounts:
Quantity
100+
1000+
Price
0.32
0.24
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

PBS-10B-2 is Electric Switch Button. This button without LED and uses a colorful button that offering a rating of 0.5A 250VAC. OFF-(ON) or ON-(OFF) are available for this switch. Besides, it uses solder terminals for quick and easy installation.

  • Rating: 0.5A 250VAC
  • Button Color: Yellow
  • Switch Function: Momentary
  • Operating Temperature: -25℃~+85℃
  • Connection Mode: OFF-(ON)
  • Installation Mode: Solder
  • Panel Mount Size: 7mm
  • IP Class: IP40
  • Electrical Life: 10,000 Cycles
  • Contact Resistance: ≤50mΩ
  • Insulation Resistance: ≥1000mΩ
  • Dielectric Strength: 1500VACmin
Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Oem
G. Weight
0.004kg
Contacts configuration
  • SPST-NO
Switching method
OFF-(ON)
DC or AC Rating
0.5A / 250VAC
Leads for
Soldering
