Raspberry Pi RP2040 Microcontroller

από Raspberry Pi
Μικροελεγκτής Raspberry Pi RP2040 Το Raspberry Pi RP2040 είναι ο πρώτος μικροελεγκτής που σχεδιάστηκε εσωτερικά στην Raspberry Pi ("Raspberry...
06-00012123
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: Raspberry Pi
Χώρα Προέλευσης: Ηνωμένο Βασίλειο
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
1.30
Χωρίς ΦΠΑ 1.05
+

ΠΕΡΙΓΡΑΦΗ

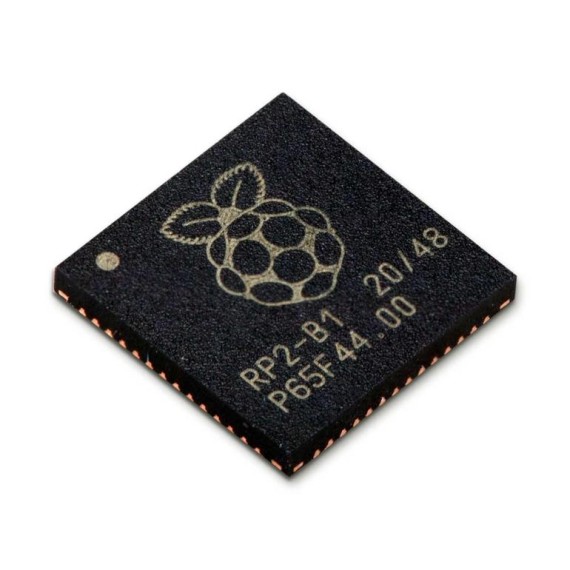

Μικροελεγκτής Raspberry Pi RP2040

Το Raspberry Pi RP2040 είναι ο πρώτος μικροελεγκτής που σχεδιάστηκε εσωτερικά στην Raspberry Pi ("Raspberry Silicon").

Αρχικά διαθέσιμο μόνο στο Raspberry Pi Pico, είναι τώρα διαθέσιμο για αγορά ως αυτόνομο τσιπ μικροεπεξεργαστή για τα δικά σας οικιακά σχέδια PCB RP2040, βιομηχανικές εφαρμογές και άλλα.

The RP2040 microcontroller comes in a QFN-56 package. The recommended PCB footprint can be found in the datasheet (or see the image below in the Resources section.

Ο μικροελεγκτής RP2040 διατίθεται σε συσκευασία QFN-56. Το προτεινόμενο αποτύπωμα PCB μπορεί να βρεθεί στο datasheet.

Μικρομηχανική μάθηση

Με δύο γρήγορους πυρήνες, άφθονη μνήμη RAM στο chip και μια θύρα TensorFlow Lite, το RP2040 είναι μια εξαιρετική πλατφόρμα για εφαρμογές μηχανικής εκμάθησης.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
Raspberry Pi
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Ηνωμένο Βασίλειο

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Processor: dual-core ARM Cortex-M0+
  • Clock speed: 133 MHz
  • SRAM: 264 kB
  • Flash memory: optional up to 16 MB via dedicated QSPI bus
  • Operating voltage: 1.8 V / 3.3 V
  • Number of GPIOs: 30
    • 2 x UART
    • 4 x analog inputs
    • 2 x SPI
    • 2 x I2C
    • 16 x PWM
    • 1 x USB 1.1 and PHY
    • 8 x PIO
  • ADC: 12-bit
  • Operating temperature: from -20°C to 85°C
  • Housing: QFN-56
  • Dimensions: 7.75 x 7.75 mm

ΔΥΝΑΤΟΤΗΤΕΣ

Pinouts of the RP2040 microcontroller

The Raspberry Pi RP2040 chip comes with30 GPIO pinsalong with popular communication interfaces such as:

  • 2x UART
  • 2x SPI
  • 2x I2C
  • 16x PWM
  • USB 1.1 and PHY controller
  • 8 PIO
  • 4x analog inputs

With these interfaces, the RP2040 microcontroller can be used widely, from projects using machine learning to those that will control motors.The I/O interfaces operate at 3.3V.
