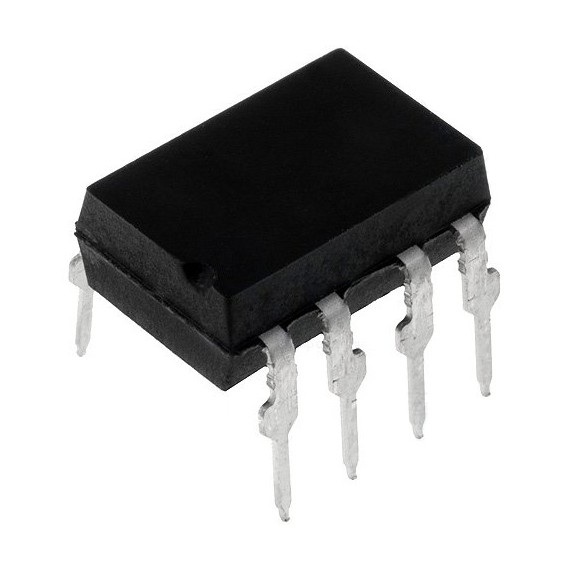

RC Timer - LMC555CN

Gross Weight: 0kg
Made in: China
Out of Stock
Product out of stock
No stock in retail store
Without VAT 1.21

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart




  • Type: Standard
  • Number of Internal Timers: 1 Timer
  • Supply Voltage - Max: 15 V
  • Supply Voltage - Min: 1.5 V
  • Minimum Operating Temperature: - 40 C
  • Maximum Operating Temperature: + 125 C
  • Mounting Style: Through Hole
  • Package/Case: PDIP-8
  • Propagation Delay - Max: 100 ns (Typ)
  • High Level Output Current: 50 mA
  • Low Level Output Current: - 10 mA
  • Operating Supply Current: 50 uA
  • Pd - Power Dissipation: 1126 mW


  • Height: 3.3mm
  • Length: 9.27mm
  • Width: 6.35mm
  • Unit Weight: 1g
