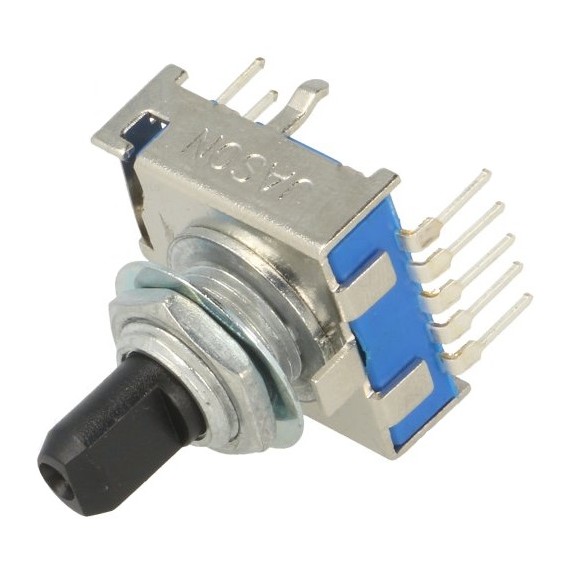

Rotary Switch - 8 Position

από NINIGI
05-00013201
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: NINIGI
Part Number: SR17A1815F89N
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
1.90
Χωρίς ΦΠΑ 1.53
+

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
NINIGI
Part Number:
SR17A1815F89N
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Διαμόρφωση Επαφών
:
  • SP8T
DC or AC Rating:
0.3A / 16VDC
Επαφές για:
PCB
Πλήθος Θέσεων:
8

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Type of switch: Rotary
  • Number of all positions: 8
  • Stable positions number: 8-position
  • DC contacts rating @R(at resistance load): 0.3 A / 16 VDC
  • Poles number: 1
  • Indexed positions: 30°
  • Operating temperature: -20...70°C
  • Leads for: PCB, straight
  • Switching method (item in brackets is instantaneous): BBM (non-shorting)
  • Contact material: Brass
  • Max. contact resistance: 50mΩ
  • Body material: Steel
  • Mechanical durability: 10000cycles
  • Shaft surface: Smooth
  • Min. insulation resistance: 100MΩ
  • Switching torque: 2.9Ncm
