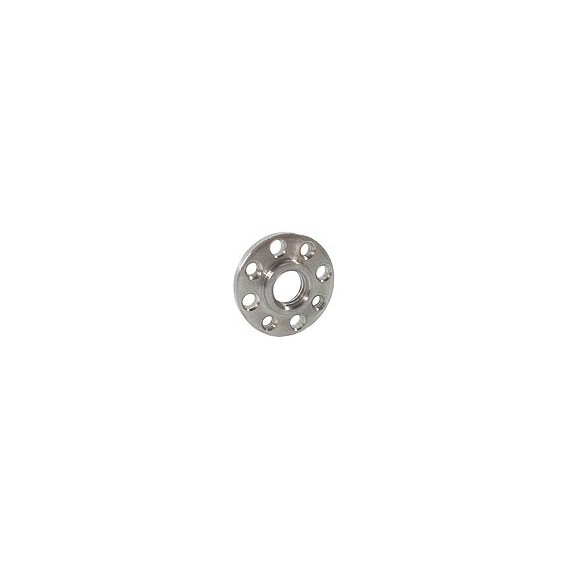

Round Screw Plate 3/8"-16

από SERVOCITY
The 3/8"-16 Screw Plate allows you to fasten an object with a 3/8-16 thread to the center of the .770" hub pattern. Four of the eight orbital holes on the...
17-00545528
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: SERVOCITY
Part Number: 545528
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
4.90
Χωρίς ΦΠΑ 3.95
+

ΠΕΡΙΓΡΑΦΗ

The 3/8"-16 Screw Plate allows you to fasten an object with a 3/8-16 thread to the center of the .770" hub pattern. Four of the eight orbital holes on the .770" pattern are tapped to 6-32, the remaining four are thru-hole so the part can be attached in many different ways. The outside diameter of the screw plate is 1" so that it's compatible with 1" components such as clamping hubs and bearings. This part is perfect for attaching an Actobotics assembly to a tripod with a 3/8"-16 stud mount. Screw plates can also be used as a heavy duty threaded inserts for materials that don't take threads well.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
SERVOCITY
Part Number:
545528
Μικτό Βάρος:
0.00907kg
Τύπος :
Screw Plate

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Material: Stainless Steel
  • Hole Pattern: 0.770"

  • Mounting components to plate: We suggest using 6-32 socket head machine screws with this plate (sold separately).
  • Mounting plate to components: Use any 3/8-16 machine screw (sold separately).
