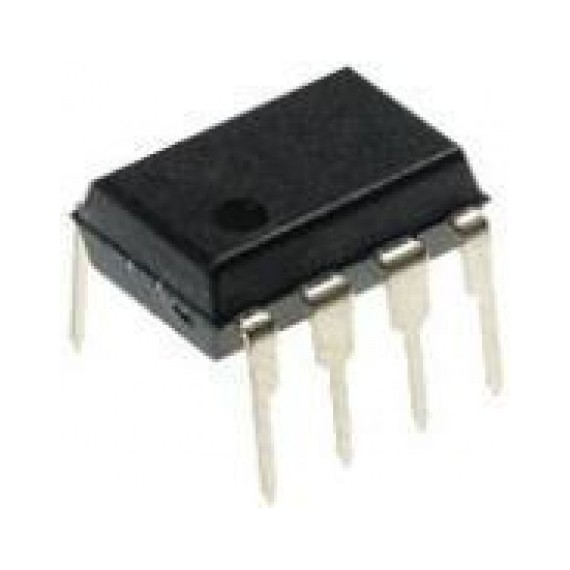

SN75176 Transceiver RS485

The SN75176B differential bus transceiver provides an interface to RS485 multipoint transmission lines.

05-00075176
Made in: Korea
In Stock
Ships in 24 Hours
No stock in retail store
1.80
Without VAT 1.45
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 1.44 1.26 1.08
WISHLIST COMPARE

DESCRIPTION

The SN75176B differential bus transceiver provides an interface to RS485 multipoint transmission lines. The RS485 bus uses balanced transmission lines to provide reliable communications in electrically noisy environments. The SN75176B meets ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27. In 8-pin DIP package.

SPECIFICATIONS

Case:
DIP8

EXTRA SPECIFICATIONS

  • Data Rate: 10 Mbps
  • Operating Supply Voltage: 5 V
  • Supply Current: 42 mA
  • Operating Temperature Range: 0 C to + 70 C
  • Mounting Style: Through Hole
  • Package/Case: PDIP-8
  • Packaging: Tube
  • Function: Transceiver
  • Maximum Operating Temperature: + 70 C
  • Minimum Operating Temperature: 0 C
  • Number of Drivers: 1
  • Number of Receivers: 1
