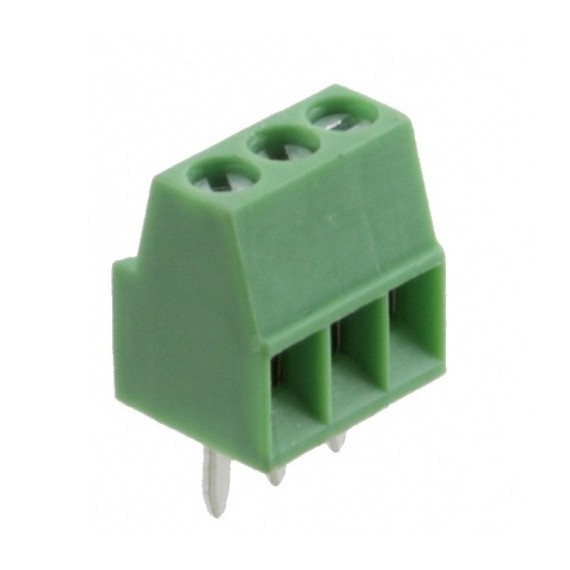

Screw Terminal 3P 2.54mm

by 4UCON

These are simple 3-position screw terminals with 2.54mm pitch pins. Rated up to 150V @ 6A, this terminal can accept 30 to 18AWG wire. The 2.54mm pitch will line up with standard 0.1" perf boards.

19-00010572
Gross Weight: 0kg
Company: 4UCON
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.70
Without VAT 0.56
+
WISHLIST COMPARE

DESCRIPTION

These are simple 3-position screw terminals with 2.54mm pitch pins. Rated up to 150V @ 6A, this terminal can accept 30 to 18AWG wire. The 2.54mm pitch will line up with standard 0.1" perf boards.

Dimensions (w/o pins): 9mm x 8mm x 6mm / 0.4" x 0.3" x 0.2"

Documents:



SPECIFICATIONS

Contacts Pitch:
  • 2.54mm
Number of Pins:
3 Pin
