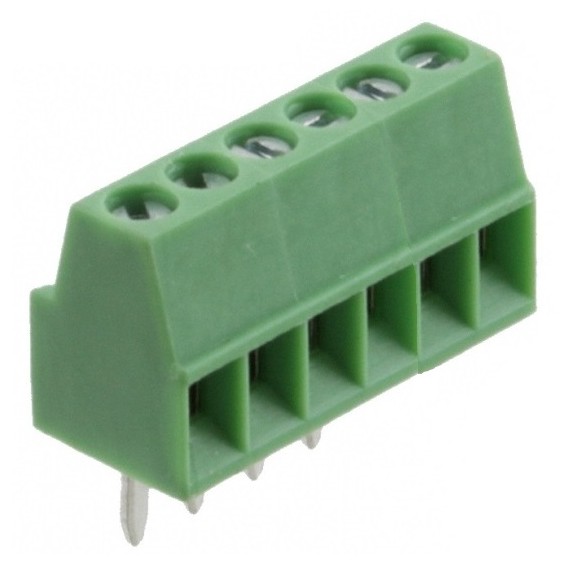

Screw Terminal 6P 2.54mm

από OEM

These are simple 6-position screw terminals with 2.54mm pitch pins. Rated up to 150V @ 6A, this terminal can accept 30 to 18AWG wire. The 2.54mm pitch will line up with standard 0.1" perf boards.

19-00010575
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
0.80
Χωρίς ΦΠΑ 0.65
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 0.64 0.56

ΠΕΡΙΓΡΑΦΗ

These are simple 6-position screw terminals with 2.54mm pitch pins. Rated up to 150V @ 6A, this terminal can accept 30 to 18AWG wire. The 2.54mm pitch will line up with standard 0.1" perf boards.

Dimensions (w/o pins): 16mm x 9mm x 6mm / 0.6" x 0.4" x 0.2"

Αρχεία:



ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Αριθμός Pins:
6 Pin
Διάκενο Επαφών:
  • 2.54mm
Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
