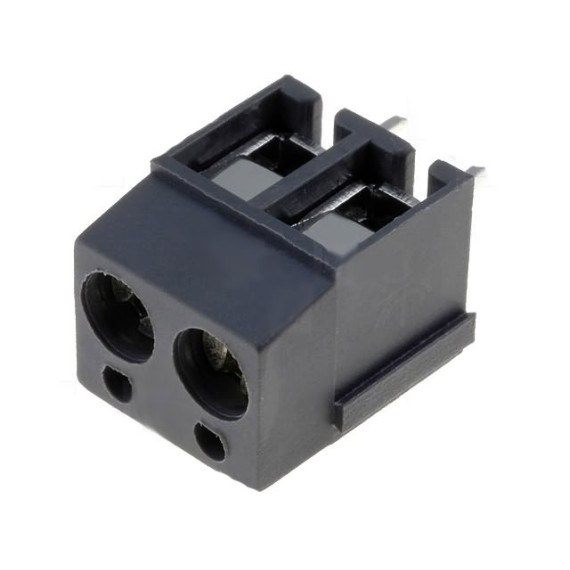

Screw Terminals 5mm Pitch (2-Pin) 16A

by Ninigi
Specifications: Spatial orientation angled 90° Max cable section 2.5mm2 Contacts pitch 5mm Number of ways 2 Contact plating tinned...
05-00008003
Gross Weight: 0kg
Company: Ninigi
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.4000
Without VAT 0.32
+
Our quantity discounts:
Quantity 10+ 100+
Price 0.3200 0.2800
WISHLIST COMPARE

DESCRIPTION

Specifications:

  • Spatial orientation angled 90°
  • Max cable section 2.5mm2
  • Contacts pitch 5mm
  • Number of ways 2
  • Contact plating tinned
  • Rated current 16A
  • Flammability rating UL94V-0
  • Colour grey
  • Contact material brass
  • Rated voltage 300V
  • Body material PBT
  • Electrical mounting THT, screw terminal
  • Connectors features assembling possibility
  • Height 12.5mm
  • Operating temperature -30...120°C
  • Depth 9mm

Documents:

SPECIFICATIONS

Contacts Pitch:
  • 5mm
Number of Pins:
2 Pin
