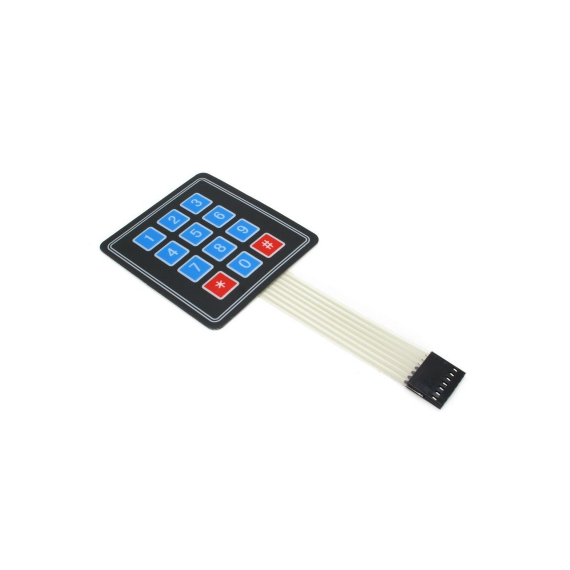

Sealed Membrane 3X4 Button Pad with Sticker

by OEM
This is a new four by three matrix twelve key membrane switch keypad that is easy to use and will look nice in your project.
19-00011333
Gross Weight: 0.01kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
1.50
Without VAT 1.21
+
WISHLIST COMPARE

DESCRIPTION

Overview

This is a new four by three matrix twelve key membrane switch keypad that is easy to use and will look nice in your project.It is very useful if you need it for prototyping with a breadboard or just need a keypad for your project.

Specification

  • Pad Size: 77 x 70 x 0.8mm
  • Transparence cable length: 86mm
  • Connector: 7 pins (Pitch 2.54mm)
  • Mounted: Adherence
  • Maximum Circuit
  • Rating: 35VDC, 100mAa
  • Insulation Resistance: 100M Omh, 100V
  • Dielectric Withstand: 250VRms (50-60Hz, 1min)
  • Contact Bounce: <=5ms
  • Life Expectancy: 1 million closures
  • Operation Temperature: 0 to +70 centigrade
  • Humidity: 40 centigrade, 90%-95%, 240 hours
