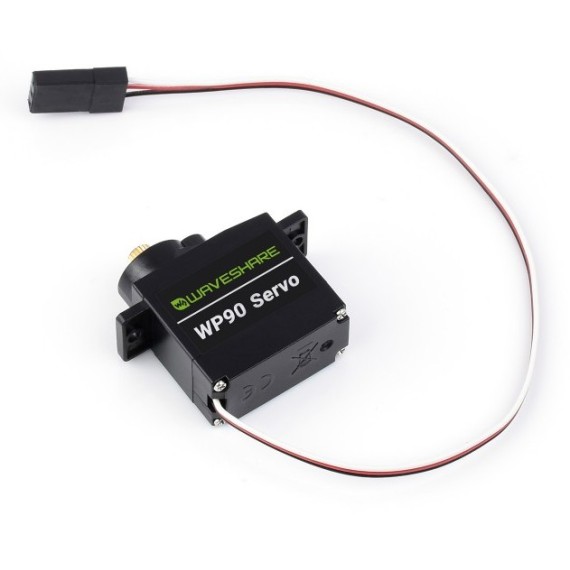

Servo Micro 2.3kg.cm Copper Gears (Waveshare WP09)

31-00024704
WP90 Servo
CompanyWaveshare Part NumberWP90 Servo
In Stock
Ships in 24 Hours
990
Our quantity discounts:
Quantity
10+
Price
8.91
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

2.3kg.Cm High-Reliability 180° Copper Gear Digital Servo

Large torque | Compact Size | Lightweight

Application Examples

  • The servo can be used in scenarios or products with limited space.
  • Ideal choice for building quadruped robots, hexapod walkers, robotic arms and other robotic projects requiring multiple servos

*for reference only, please refer to the part list for detailed package content.

Allows Controlling Up To 16 Servos At The Same Time Via Raspberry Pi Servo HAT

*for reference only, the Raspberry Pi and Servo Driver HAT are NOT included.

Lightweight & High Strength Structural Design

High-Reliability Gear Reduction Group For Longer Lifetime

Adopts high-precision and high-strength metal reduction gears to ensure smooth movement, features excellent reliability. The gear group can provide superior performance and long service life for the device in various environments.

Comes With Multiple Servo Arms
More Flexible Assembly Methods

  • Product Type: WP90 Servo PWM digital servo
  • Torque: 2.3kg.cm @ 6V
  • Rotation Angle: 180° (500 → 2500μsec)
  • Mechanical Limited Angle: No limit
  • Operating Voltage: 3~8.4V
  • Gear: copper gear
  • Idling Speed: 0.1sec/60°(100RPM)@6V
  • Encoder Type: Carbon film potentiometer
  • No-Load Current: 150mA@6V
  • Locked-Rotor Current: 1A@6V

Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Waveshare
G. Weight
0.013kg
Servo Standar
25T (Futaba/Feetech)
Gear Type
Copper
Rotation
180°
Servo Operation
Digital
Servo Size
Micro
Speed (6V)
0.10sec/60°
Torque (6V)
2.3 kg.cm
