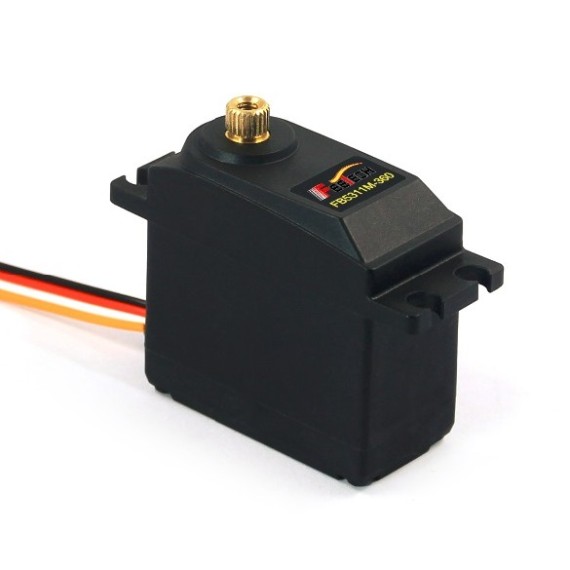

Servo Standard 15kg.cm Metal Gears with Analog Feedback (Feetech FB5311M-360)

by Feetech
It looks like a servo, it acts like a servo, but it's more than just a servo! We got a factory to custom-make these classic 'standard' sized hobby servos...
11-00012822
Company: Feetech
Part Number: FB5311M-360
Made in: China
In Stock
Ships in 24 Hours
Available in store
24.90
Without VAT 20.08
+
WISHLIST COMPARE

DESCRIPTION

It looks like a servo, it acts like a servo, but it's more than just a servo! We got a factory to custom-make these classic 'standard' sized hobby servos with a twist - the feedback (potentiometer wiper) line is brought out to a fourth white wire. You can read this wire with an analog input such as those on an Arduino, to get the servo's position. That information can be used in robotics to improve stability or even allow 'recording' of servo motion.

This is the standard size Metal Gear Digital Servo. This solid consumer grade servo is continuous rotation and able to take in 6 volts and deliver 15.5kg.cm.

This is a simple servo for any project with accuracy in motion!

This high quality servo is perfect for your mechatronic needs and if you are looking to get into robotics, this is where to start.

The FB5311M-360 servo comes standard with a 4-pin power and control cable (red=power, black=ground, white=data and yellow=feedback) and all hardware listed below.

SPECIFICATIONS

Gear Type:
Metal
Rotation:
360°
Servo Operation:
Digital
Servo Size :
Standard
Torque (6V):
15.5kg.cm

EXTRA SPECIFICATIONS

  • Mechanical
    • Gear type: Copper Gear
    • Limit angle: No limit
    • Bearing: 2 Ball bearings
    • Horn gear spline: 25T(5.9mm)
    • Horn type: Plastic,POM
    • Case: Nylon & Fiberglass
    • Connector wire: 300mm ±5 mm(Black ,Red, Yellow and White)
    • Motor: Metal brush motor
    • Splash water resistance: NO
    • Size: 40x38.7x20.3mm
    • Weight: 64g
  • Electrical (Function of the Performance)
Operating Voltage Range 4.8V 7.4V
Idle current(at stopped) 5mA   7mA
No load speed 40RPM 50RPM
Runnig current(at no load) 130mA 150mA
Peak stall torque 13kg.cm 15.5kg.cm
Stall current 1500mA 1800mA
