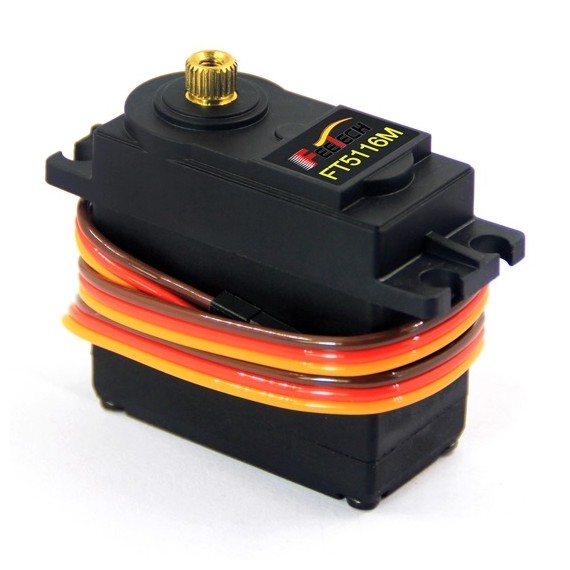

Servo Standard 15kg.cm Metal Gears with Overload Protection (Feetech FT5116M)

by Feetech
This is the standard size Metal Gear Digital Servo . This solid consumer grade servo is able to take in 6 volts and deliver 15kg.cm of maximum torque at...
11-00012821
Company: Feetech
Part Number: FT5116M
Made in: China
In Stock
Ships in 24 Hours
Available in store
14.90
Without VAT 12.02
+
WISHLIST COMPARE

DESCRIPTION

This is the standard size Metal Gear Digital Servo . This solid consumer grade servo is able to take in 6 volts and deliver 15kg.cm of maximum torque at 0.2sec/60° and has out of control protection, overheating and overload protection.

This is a simple servo for any beginner project with fail safe protection!

This high quality servo is perfect for your mechatronic needs and if you are looking to get into robotics, this is where to start.

The FT5116M servo comes standard with a 3-pin power and control cable (red=power, brown=ground and yellow=data) and all hardware listed below.

SPECIFICATIONS

Gear Type:
Metal
Rotation:
270°
Servo Operation:
Digital
Servo Size :
Standard
Speed (6V):
0.20sec/60°
Torque (6V):
15.5kg.cm

EXTRA SPECIFICATIONS

  • Mechanical
    • Gear type: Copper Gear
    • Limit angle: No limit
    • Bearing: 2 Ball bearings
    • Horn gear spline: 25T(5.9mm)
    • Horn type: Plastic,POM
    • Case: Nylon & Fiberglass
    • Connector wire: 300mm ±5 mm(Brown ,Red and Yellow)
    • Motor: Metal brush motor
    • Splash water resistance: NO
    • Size: 40x38.7x20.3mm
    • Weight: 64g
  • Electrical (Function of the Performance)
Operating Voltage Range 4.8V 6V
Idle current(at stopped) 5mA   7mA
No load speed 0.25sec/60° 0.2sec/60°
Runnig current(at no load) 130mA 150mA
Peak stall torque 13kg.cm 15.5kg.cm
Stall current 1500mA 1800mA

FEATURES

  • Large Angle control (300 degrees: 500-2500us)
  • Out of control protection (off the signal and unable to output)
  • Overheating protection (over 80 ℃ to output, programmable adjusting)
  • Overload protection (over 80% of the torque of the blocking torque, lasting for 8 seconds, the torque becomes smaller)
  • High servo update rate (250Hz)
  • Dual-mode operation (programmable switch between servo mode and motor mode)
