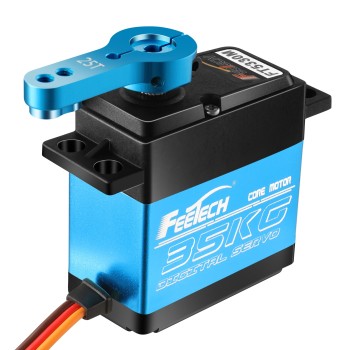

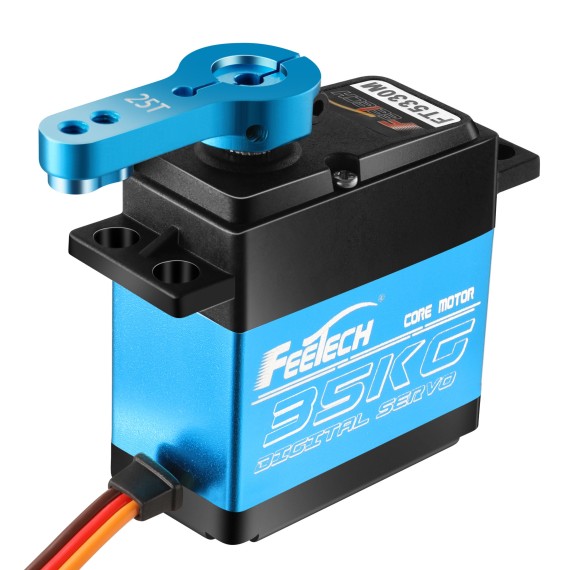

Servo Standard 35kg.cm Metal Gears (Feetech FT5330M)

από FEETECH
This Digital servo has metal housing around the middle which allows for heat to rapidly dissipate, w ith double ball bearings you will have smooth...
11-00012823
Ογκομετρικό βάρος: 0.09kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: FEETECH
Part Number: FT5330M
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
19.90
Χωρίς ΦΠΑ 16.05
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 15.92

ΠΕΡΙΓΡΑΦΗ

This Digital servo has metal housing around the middle which allows for heat to rapidly dissipate, with double ball bearings you will have smooth movement, and powerful torque with a limited budget.

FT5330M adopts all steel gera combination, the speed ratio is less than FT5325M, and the torque is grater than FT5325M. The gear shaft is thickened to 2.0. Optimizes center distance, doyble ball bearing desing, longer life. Sall 8 seconds automatic access protection. Overheating protection at 70°C.

It is suitable for 1/10, 1/8 scale cars, airplane, boat, robot.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
FEETECH
Part Number:
FT5330M
Μικτό Βάρος:
0.088kg
Χώρα Προέλευσης:
Κίνα
Servo Standar
:
25T (Futaba/Feetech)
Λειτουργία Servo :
Ψηφιακή
Μέγεθος Servo
:
Standard
Περιστροφή:
180°
Ροπή (6V):
28.8kg.cm
Ταχύτητα (6V):
0.23se/60°
Τύπος Γραναζιών:
Μεταλλικά

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Limit angle: NO limit
  • Bearing: Ball bearings
  • Horn gear spline: 25T/5.9mm
  • Horn type: Plastic, POM
  • Case: PA & Aluminum
  • Connector wire: 30cm
  • Motor: Core Motor
  • Operating Voltage Range: 6V - 7.4V
  • Idle current (at stopped): [email protected]
  • No load speed: 0.192sec/60°@7.4V
  • Runnig current(at no load): [email protected]
  • Peak stall torque: [email protected]
  • Rated torque: [email protected]
  • Stall current: [email protected]
  • Command signal: Pulse Width Modification
  • Amplifier type: Digital comparator
  • Pulse width range: 500~2500usec
  • Stop position: 1500 sec
  • Dead band width: ≤4 μsec
  • Rotating direction: Counterclockwise (1500→2000μsec)
  • Storage Temperature Range -30 - 80℃
  • Operating Temperature Range: -20 - 60℃
  • Dimensions:
    • 55x20x43mm
    • Weight: 68g
    •  Horn:
      • 35x15x6mm
      • Fixed with 2 Allen bolts Νο.1.5mm
      • 2x M3 holes
