Servo to Crocodile Clip Adapter Cable

If you have a standard servo and need to connect it to a board that accepts crocodile clip connections then our new servo to crocodile clip adapter cable...
83-00004178
Company: Kitronik
Part Number: 4178
Made in: China
Out of Stock
Product out of stock
No stock in retail store
1.50
Without VAT 1.21

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

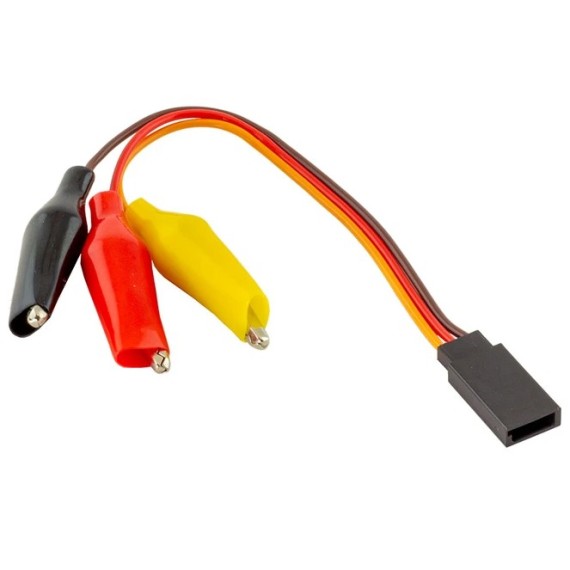

If you have a standard servo and need to connect it to a board that accepts crocodile clip connections then our new servo to crocodile clip adapter cable is the accessory for you.

The adapter cable features 100mm colour coded cables terminating in a male servo connector at one end and colour coded 35mm crocodile clips at the other.

The servo to crocodile clip adapter cable is ideal for connecting standard servos to the Kitronik Klip Motor Driver Board for microbit.

As an alternative, if you also need to obtain a standard servo, we do also have a Clippable Servo. The clippable servo is a metal gear 180-degree rotation servo that comes pre-fitted with crocodile clip connections.

NOTES

SPECIFICATIONS

  • This adapter cable allows you to attach a standard servo to a board that accepts crocodile connections.
  • Colour coded 100mm leads and crocodile connector covers.
  • Ideal for use in robotics/Buggy projects.
  • Length: 135mm
Wire Colour. Clip Cover Colour. Usual Servo Assignment.
Brown Wire. Black Clip Cover. GND.
Red Wire. Red Clip Cover. +ve.
Orange Wire. Yellow Clip Cover. Signal.
