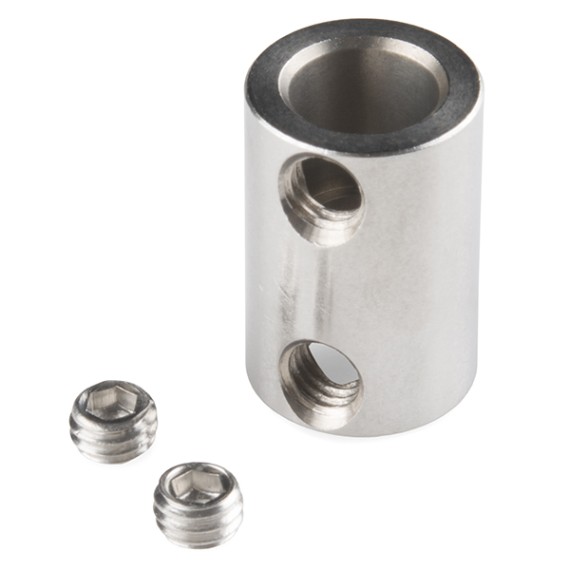

Shaft Coupler - 1/4" to 5/16"

These stainless steel shaft couplers allow you to couple two size shafts together. They can be used for connecting motor shafts to drive shafts, or two...
17-00625112
Ογκομετρικό βάρος: 0.03kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Part Number: 625112
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
6.00
Χωρίς ΦΠΑ 4.84
+

ΠΕΡΙΓΡΑΦΗ

These stainless steel shaft couplers allow you to couple two size shafts together. They can be used for connecting motor shafts to drive shafts, or two different-sized shafts. These shaft couplers have a length of 0.75?, a outer diameter of 0.50?, and couple 1/4? to 5/16"shafts.

Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

Dimensions:

  • Length - 0.75?
  • Diameter - 0.50?
  • Bore A ID - 1/4?
  • Bore B ID - 5/16"

Documents:

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Part Number:
625112
Μικτό Βάρος:
0.0288kg
Εσωτερική Διάμετρος A:
6.35mm
Εσωτερική Διάμετρος B:
7.937mm
Εξωτερική Διάμετρος:
10mm
Μήκος:
19mm
Τύπος Συνδέσμου:
Solid
Υλικό:
Stainless Steel
