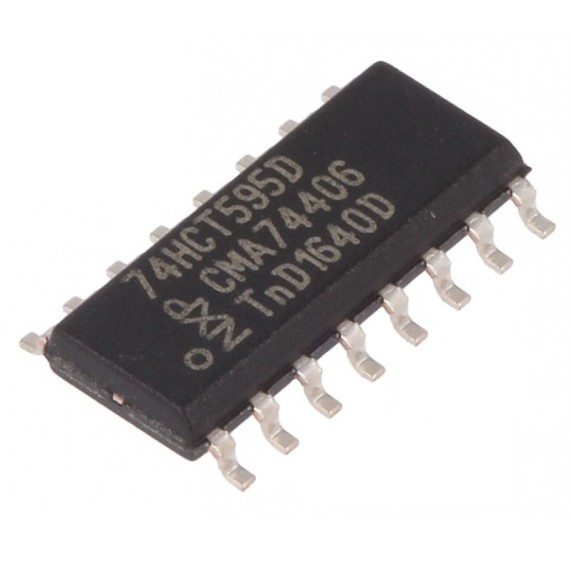

Shift Register 8-Bit SMD - 74HCT595D

The 74HC595; 74HCT595 are high-speed Si-gate CMOS devices and are pin compatible with Low-power Schottky TTL (LSTTL). They are specified in compliance with...
05-00968903
Gross Weight: 0kg
Company: NEXPERIA
Part Number: 74HCT595D.112
Out of Stock
Product out of stock
Available in store
0.80
Without VAT 0.65

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

The 74HC595; 74HCT595 are high-speed Si-gate CMOS devices and are pin compatible with Low-power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard No. 7A.

The 74HC595; 74HCT595 are 8-stage serial shift registers with a storage register and 3-state outputs. The registers have separate clocks.

Data is shifted on the positive-going transitions of the shift register clock input (SHCP). The data in each register is transferred to the storage register on a positive-going transition of the storage register clock input (STCP). If both clocks are connected together, the shift register will always be one clock pulse ahead of the storage register.

The shift register has a serial input (DS) and a serial standard output (Q7S) for cascading. It is also provided with asynchronous reset (active LOW) for all 8 shift register stages. The storage register has 8 parallel 3-state bus driver outputs. Data in the storage register appears at the output whenever the output enable input (OE) is LOW.

Applications

  • Serial-to-parallel data conversion.
  • Remote control holding register.

SPECIFICATIONS

Case:
SO16

SPECIFICATIONS

  • Type of integrated circuit: Digital
  • Kind of integrated circuit:
    • 3-state
    • 8bit
    • Parallel/serial out
    • Serial input
    • Shift register
    • Storage register
  • Mounting: SMD
  • Case: SO16
  • Series: HCT
  • Kind of package: Tube
